Wall series fan heater

Luxurious Appearance

High Efficiency

Stability & Reliability

Smart Control

Comfortable & Health



Anion Function

Anion generator in the wall series anion fan heater brings plenty of anion element,which has the function of air freshening, sterilization and health care and freshen air in your room and make one healthier as he or she enjoys the pleasure of new machine.

Intelligent Functions

Intelligent functions involving 3 parts: Intelligent temperature control; Intelligent velocity control; Intelligent anion generation control.

Exquiste Appearance

It applied with Latest appearance design, exquisite appearance and multiple functions.

LED Screen Panel

It is applied LED screen, which provide clear content of operating mode.

Luxurious Appearance

Fresh digital-controlled curve panel, whole metal aluminum alloy outer cover, top in and bottom swing wind out design;

High Efficiency

High heat conversion, Safe electricity-free PTC heater, Prompt temperature rise; Low noise and high performance air conditioner motor.

Stability & Reliability

Triplicate Security Protection: Thermal protector, Varistor and fuse;

Automatic postpone safety protection when power off;

Smart Control

Smart and accurate operation through red ray remote control and LCD touch switch;

Remote control makes distance control come true.

Auto switch of heat, air volume and anion fresh functions;

Easy operation;

Comfortable & Health

Healthy anion cleaner, purifying air and sterilizing at any time;

Suitable for families, hospitals and offices etc. to get warm air;

Wall series fan heater

Anion fresh function Cylindrical aluminum alloy wire-drawing body aluminum  alloy wheel Uncharged PTC heater Triple protection Remote control Key switch Customized power supply

Wall series fan heater

Wall series fan heater Tech Specs:

Model

 Dimension
 (mm)

Voltage
(v~)

Frequency
(Hz)

Motor Power
(w)

PTC Power
(kw)

 Air velocity
(m/s)

Air volume
(m3/h)

Temperature rise
(k)

Noise
(dB)

Net weight
(kg)









  H    L

H

L

H

M

L

H

M

L







RM-G35-D/Y

825x220x240

220

50

  60   20

3.5

1.8

4

3

2

460

340

220

40-60

<36

10.5

▲ Installation

RM-G35-D/Y install

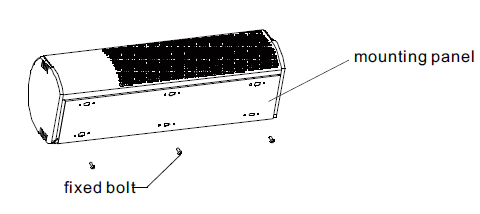

1Take off mounting panel: loose the fasten bolt on the mounting panel, then take it off

RM-G35-D/Y install

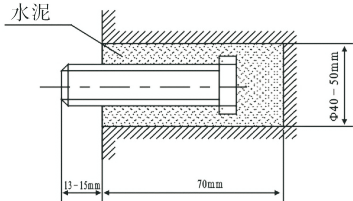

2、Fix the bolt in the right place and use mounting panel to make sure it and stuff with concrete to fix it.


RM-G35-D/Y install

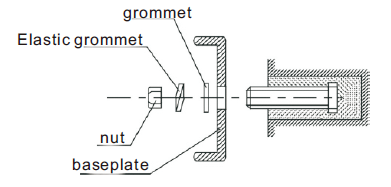

3、Fasten by using grommet and nut after concretion of concrete and lock with mounting panel and check if it is fastened.

RM-G35-D/Y install

4、Hang the body of product against the baseplate and check to make sure it is safe and tightly fastened.



▲ Operation Intrruction

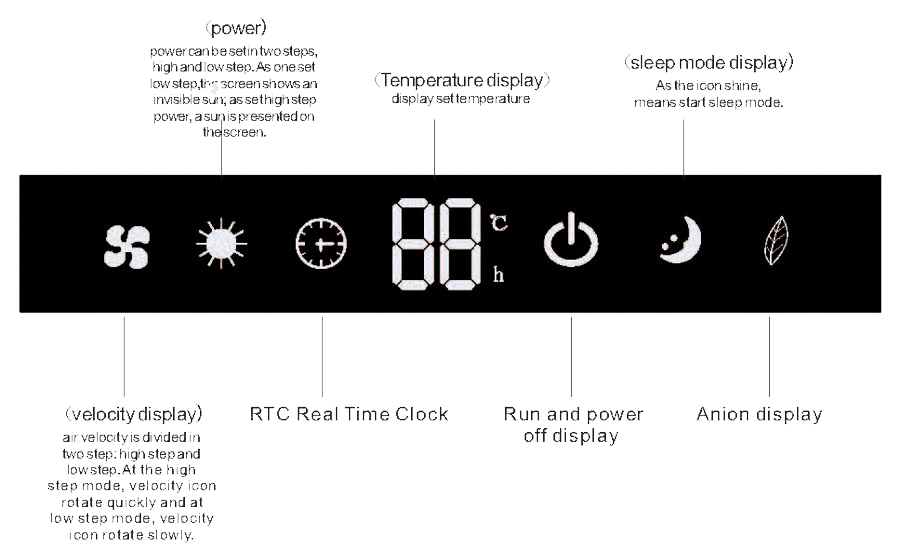

Wall series air curtain screen display

wall series air curtain screen display

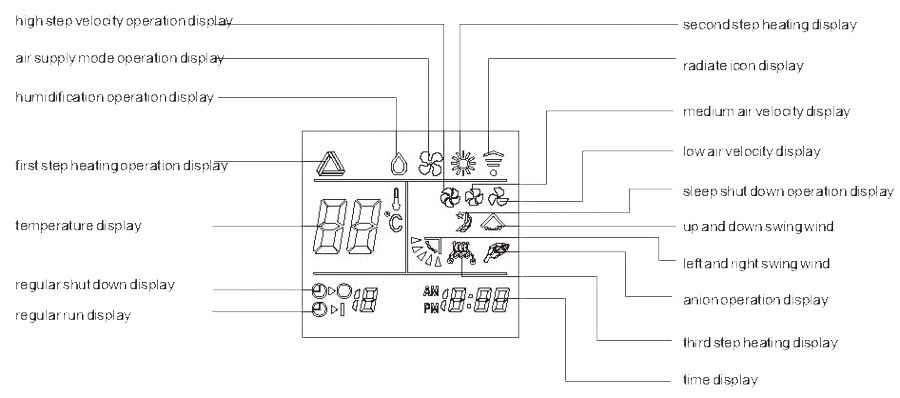

Remote control screen display

Remote control screen display

Buttons on the remote control plate

Buttons on the remote control plate

▲ 操作指南

冷暖:
1.1 按开/关键启动风幕机(此时风幕机默认以冷风高速工作)
1.2 按开关键可实现热风、冷风和风速切换规律为:启动(冷风高速)-冷风低速-热风高速-热风低速-关机
2 发射器操作
2.1 按开关键启动风幕机
2.2 连续按冷键或热键可实现冷风高低速切换或热风高低速切换

三按键接收器系列
1 发射器与接收器操作一致
1.1 按开关键启动风幕机(此时风幕机默认以冷风高速工作)
1.2 连续按冷键或热键可实现冷风高低速切换或热风高低速切换
注: 1、在热风状态中连续工作分钟后按开关键关机,风幕机将在冷风状态下累积工作3分钟然后自动关机。
         2、请在风幕机额定的电源环境下进行以上操作

3G机型面板开关:左“Ⅰ”为小功率, 低温度输出;右“Ⅱ”为大功率,高温度输出。
根据使用环境,调整出风口的导风件,以获得满意的效果(如图所示)
