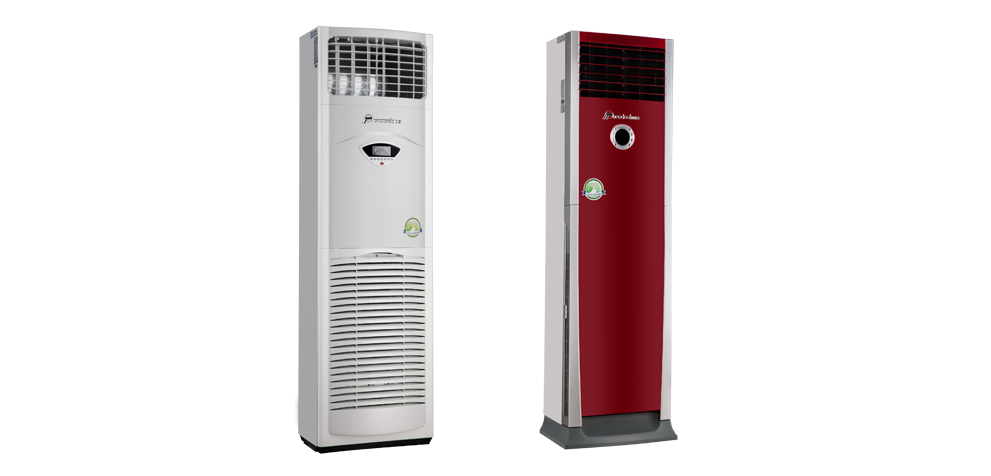

Vertical fan heater

High performance

Humanized operations

Triple protections

Reliability

Application:It is used for the places like household, office, meeting room etc.

Plasma Hot WindPlasma Hot Wind

High performance

PTC heater:high heating capacity,low electricity and long lifetime

Humanized operations

Adopting infrared ray updated remote control or touch switch, the heater has three options. The heating capacity, air volume and anionic function can be adjusted flexibly according to one's preferences

Humanized design

Stoving varnished cabinet, the air comes in from the bottom and comes out from the top. With anti-water adn fire appearance, it is convenient for installation and maintenance.

Triple protections

Triple protections which are: overheating protection, piezoresistor protection, fuse protection.

Anion fresh function

Anion generator in the wall series anion fan heater brings plenty of anion element, which has the function of air freshening, sterilization and health care and freshen air in your room and make one healthier as he or she enjoys the pleasure of new machine.

Reliability

Adopting optimized fan, it operates reliably. It continues to operate for 5000 hours without damages.


Plasma Hot Wind Tech spec

Model Series Dimension Air volume PTC Power Voltage Suitable area Noise Net Weight Wires zero wire,live wire,ground wire(mm²) Current
    (mm) (m³/h) 1档 2档 3档 (v~) (m³) (dB) (kg) 220v~ 380v~ 220v~ 380v~
RF-6-D/Y 艳阳星 (mm) 620 6 4 2 220 25 <35 27 >=3.5 >=1.5 >=30 >=10
RF-6-3D/Y (mm) 620 6 4 2 380 25 <35 27 >=3.5 >=1.5 >=30 >=10
RF-9-D/Y (mm) 720 9 6 3 220 40 <36 28 >=5.5 >=2 >=45 >=15
RF-9-D/Y (mm) 720 9 6 3 380 40 <36 28 >=5.5 >=2 >=45 >=15
RF-15-3D/Y 暖阳星 (mm) 1020 15 10 5 380 65 <37 31 >=9 >=3 >=70 >=25
RF-18-3D/Y (mm) 1120 18 12 6 380 80 <38 32 >=10.5 >=3.5 >=85 >=30
