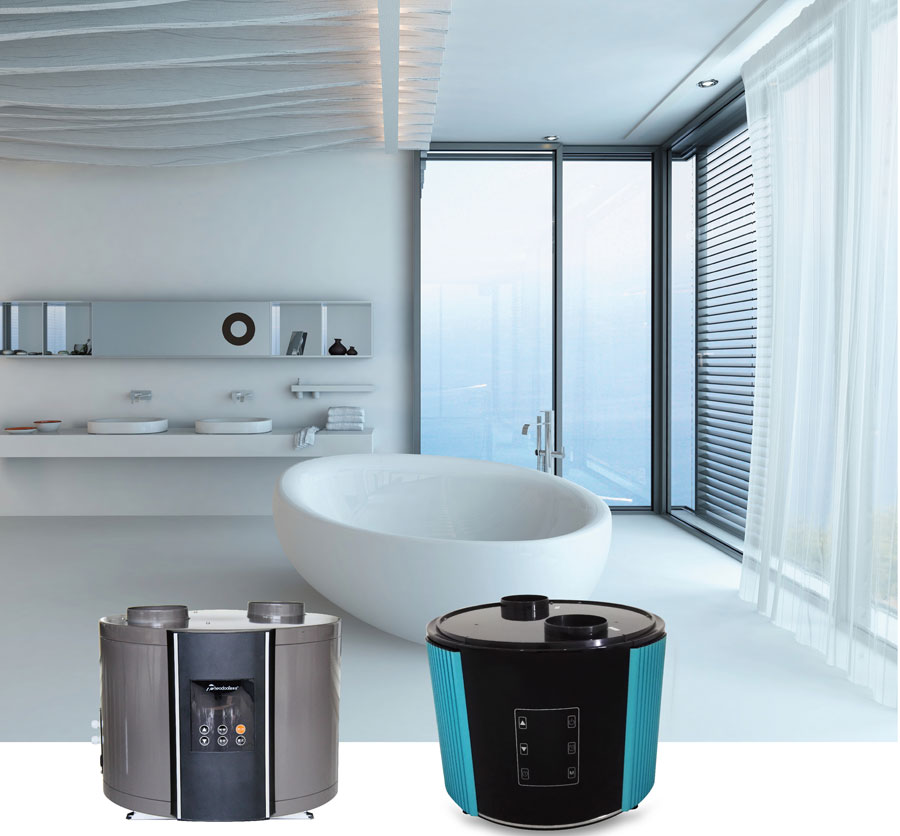

Heat Pump Water Heater unit (Double ducts at top)

feature:

This heat pump unit offer efficient domestic hot water heating. It can be combined simply and flexibly with suitable external water tanks(cylinders). The outer case can be made from powder coated steel or stainless steel. It is also possible to connect an air duct, through which any waste heat from an adjacent room, for example, from tumble dryers, freezer or heaters. Conversely, the coller exhaust air generated during operation can be used, for example, to cool a storeroom or kitchen temporarily. Operation is convenient by smart PCB control panel.


Heat Pump Water Heater unit Tech Specs:

Model RS-3.6GX/B
Rated Input Power 800 W
Rated Heating Capacity 3000 W
Power Supply 220V~50Hz
Heating ampere 3.6 A
Compressor Panasonic
Refrigerant R410a /750g
Operation condition 6-43℃
Output water temperature 55 ℃
Hot water supply capacity 65 L/h
Noise (dB) 48dB
Tank material Steel or Stainless steel 304
Water connection 3/4''
Fan -air duct size ∮150mm
Air pressure 150Pa
Air flow 450m3/h
Net weight 42kgs
Dimension ∮600x505mm

* Circulation pump is required if the water pressure is lower (<0.15Mpa).

Energy Saving

Expenses comparison- 1 ton water to heat from 15℃ to 55℃

Name

Energy  Source

Energy Price

Average Expenses

Solar water heater and electronic auxiliary (Calculated for 90-120 days electronic auxiliary

Solar energy and electricity

Electricity 0.8RMB/Degree Free solar energy

13RMB/Ton

Diesel oil boiler

Diesel oil

4.9RMB/Kg

32RMB/Ton

Fuel gas water heater

Gas

6.0RMB/Kg

39rmb/Ton

Electrical water heater

Electricity

0.8RMB/degree Free solar energy

9RMB/Ton

Environmental Protection

Heat comes from air, no exhaust gas produced. Protect our environment is social morality.

According to the study indicated that, for each unit of electricity ,the consumption of fossil material to about 0.67Kg of carbon dioxide release. China’s average temperature and a five-person households use hot water sa an example, one-year results of the air to water heater, carbon dioxide emissions can be reduced to 500kg, And save a few thousand dollars per year of liquefied gas and electricity costs .





Easy Install
