Domestic Split Type Intelligent Cube Series

Smart convenient: Screen, control panel equipped on water tank. Simple operation and smart control

Applicable occasion: Family shower for 2-8 people; Spa; Kitchen; Sanitary Water Use;

Applicable ambient temperature: -7°C ~ 43°C

Precise temperature control, hot water temperature can reach up to 70℃.

Split Type Intelligent Magic cube A+

Features:

Powerful heart: International brand “Panasonic” compressor, stable operation & energy-efficient.

Energy-efficient: Huge corrugated hydrophilic aluminum foil heat exchanger fin, higher capacity.

Elegant exterior: colorful steel shell, digital automatic welding technology, higher corrosion proof.

Energy saving and insulation: 50mm thickness and 40kg/m3 density polyurethane disposal foaming thermal insulation.

Flow resisting mixed-proof: Double thermal sensor to control water temp accurately, prevent hot and cold water mixing.

Reverse defrosting: Smart reverse defrosting control technology, unaffected by cold weather.

Applicable occasion: Family shower for 2-8 people; Spa; Kitchen; Sanitary Water Use;

Applicable ambient temperature: -7°C ~ 43°C

Precise temperature control, hot water temperature can reach up to 70℃.

Theodoor Air Source Water Heater , Water pump and the host will be perfect for the whole integration m, it has many ways to install , Can solve any problen of housing locations , Noble and elegant , the classic interpretation of fashion .

A Wide Range of Security Protection

Security Protection: ground fault circuit interrupter, leakage current checking, Ground Protection

Intelligent Protection System: protection of pressure voltage, motor overload protection, over-temperature protection

Safety Valve to Protect: Inside water temperature and pressure sensor, anyone value of more than security, it will be start relief

Theodoor heat pump work principle :

The system follows carnot cycle principole. Driven by Electricity , its working substance absorbs the latent heat in the air or other low-temperature heat source , and waste heat let out of living or industry , compresses it to heat by compressor , exchange , exchange heat with water to higher the water temperature , 1 electricity can prduce heat equal to 4 electricity .it’s a new water heating equipment .

heat pump work principle

Energy Saving

Expenses comparison- 1 ton water to heat from 15℃ to 55℃

Name

Energy  Source

Energy Price

Average Expenses

Solar water heater and electronic auxiliary (Calculated for 90-120 days electronic auxiliary

Solar energy and electricity

Electricity 0.8RMB/Degree Free solar energy

13RMB/Ton

Diesel oil boiler

Diesel oil

4.9RMB/Kg

32RMB/Ton

Fuel gas water heater

Gas

6.0RMB/Kg

39rmb/Ton

Electrical water heater

Electricity

0.8RMB/degree Free solar energy

9RMB/Ton

heat pump energy saving

Environmental Protection

Heat comes from air, no exhaust gas produced. Protect our environment is social morality.

According to the study indicated that, for each unit of electricity ,the consumption of fossil material to about 0.67Kg of carbon dioxide release. China’s average temperature and a five-person households use hot water sa an example, one-year results of the air to water heater, carbon dioxide emissions can be reduced to 500kg, And save a few thousand dollars per year of liquefied gas and electricity costs .

heat pump environmental protection

Tech Specs



Dmestic Split Type Intelligent Magic Cube A+ Series

Series

Model

Input power(kW)

Current (A)

Voltage(V)

Output(kW)

Output water Temp.(Highest)(℃)

Hot water(L/h)

Heater power(kW)

Heater hot water(L/h)

Main unit size(mm)

Tank size(mm)

Noise(dB)

X5-B

RS-3.6FJ/150 0.8 4.0 220 3.6 55 77 2.0 41 780X255X540 470x1400 45

X5-B

RS-3.6FJ/150 0.8 4.0 220 3.6 55 77 2.0 41 780X255X540 470x1400 45

X5-B

RS-3.6FJ/150 0.8 4.0 220 3.6 55 77 2.0 41 780X255X540 470x1400 45

X5-B

RS-3.6FJ/150 0.8 4.0 220 3.6 55 77 2.0 41 780X255X540 470x1400 45

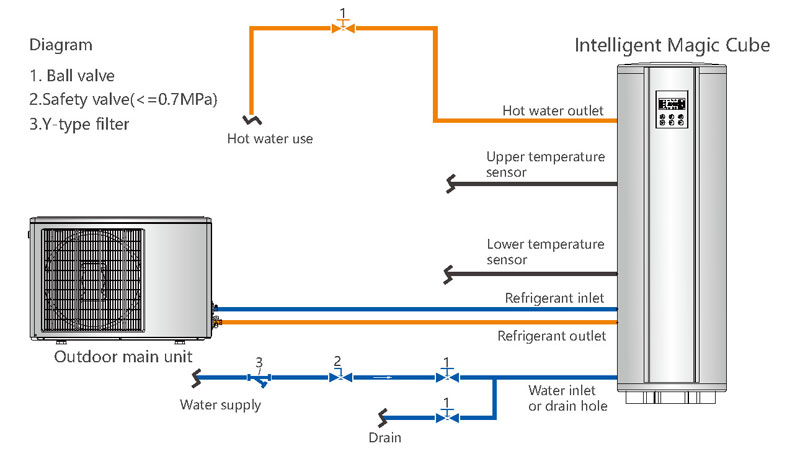

Split Type Intelligent Magic Cube A+ Installation Diagram

X5-B installation

HOW TO CHOOSE THE SUITABLE CAPACITY?

Choose which sizes of water tank is related to the number of people using hot water, the number of bathrooms, whether there are bathtub, kitchens and other hot water consumption and so on.



GET THEODOOR AIR SOURCE WATER HEATER, ENJOY FREE COOL AIR FOR KITCHEN

The air source water heater unit has many installation ways, It can be installed at veranda, kitchen, storage room and garage etc.

WHY THE AIR SOURCE HEAT PUMP IS THE MOST ENERGY SAVING WATER HEATER?

Air source heat pump is not direct heating by the heating element, but with a small amount of electric driving the main unit's compressor to work, the low temperature air is compressed to high temperature air , through the pipeline circulation system to heat the water, the power consumption is only 1/4 of the traelectric water heater.


STAR BRAND

GZ Theodoor Tech Co., Ltd. is a professional high technology enterprise, focus on R&D and manufacture energy saving products such as Air Source Heat Pump, Air Curtain etc. As one of the star brands in Heat Pump industry,Theodoor produces a variety of Heat Pumps and exports to more than 80 countries and regions.

PRECISION PRODUCTION

Founded in 2002, Theodoor is located in Guangzhou innovation and development new area--Sino-Singapore Knowledge City (SSGKC) with an area of 30 000 square meters. We have modern production workshop, applying the most advanced industrial  equipments and detecting instruments to provide product manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.

INNOVATION TECHNOLOGY

WIith consecutive creation and innovation, Theodoor has built up national standard environmental simulation laboratory as well as heat pump long-time running laboratory. What‘s more, Theodoor has accessed national

invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry. Theodoor and the produds had passed ISO9001,1S014001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO,and SAA certifications etc.



HARVEST HONOR

Theodoor has acqulred "High-tech Enterprlses", "famous Brand", " Guangzhou Municipal Government Key Marketing Products", "Top-ten Famous Brand", "Top-ten Advantages of Enterprlses", "The Most Investment Vaue Award", "Apply International Standard Product Standards Certificate ", "Standard Innovation Working Award" and " Star Brand" honors, and has won the biddings of matching projects of Guangzhou Asian Games, Beijing Olympic, Shanghai World Expo, Beijing Language University, Beijing Coal to Electricity Project,Tianjin Airline, Sichuan Airline etc. "lnnovation, Creation, Share, Win-win"! Theodoor is committed to create a better green life for the global customers.




INNOVATE AND CHANGE, KEEP MOVING

Focus on environmental protection and energy saving industry for 15 years, the R&D team inherited Germany strict standards and superb technology, at the same time keep innovation, had insight into the market demand, made the perfect integration of technology and application, Theodoor has been moving forward in the forefront of the times.
