Integrated Residential Heat Pump X7-D



Integrated Residential Heat Pump X7-D by Air Source for Household

Description:

1. Integrated heat pump water heater X7 adopts all in one (integrated) compact design. Its installation is easy.
2. Air inlet and Air outlet designed from side.
3. Our integrated heat pump adopts double energy system by air-water technology and optional with auxiliary electric heater. It can offer hot water in short time for emergent request.
4. It has advantages like extremely compact structure, good looking face, convenient maintenance and inspection.
5. This integrated heat pump is environmentally friendly. There isn't any burning gas from the water heater. The refrigerant won't contaminate the ozonosphere. So it benefits the society.
6. This integrated heat pump will not be affected by geographical and weather changing. It can supply hot water at any time.
7. The water temperature can be adjusted as needed and controlled by micro-computer automatically.
8. Save energy, saving more energy by 75% comparing with ordinary electric water heater.


Integrated Residential Heat Pump X7-D TECH SPEC:

Model

RS-3.6FAD/150L

RS-3.6FAD/190L

RS-3.6FAD/260L

RS-3.6FAD/300L

Rated Input Power

0.7 KW

0.7 KW

0.7 KW

0.7 KW

Rated Heating Capacity

2.8 KW

2.8 KW

2.8 KW

2.8 KW

Rated current

3.2A

3.2A

3.2A

3.2A

Power Supply

220V/50HZ

Refrigerant

R134a

Compressor

Panasonic / Rotary  for R134a

Outlet water temperature

60 ºC (highest temperature= 70ºC)

Capacity of Water Tank

150L

190L

260L

300L

Inner water tank

Stainless steel SUS304

Condenser coil

External: Copper Coil or  Inner: Stainless steel SUS316

Expansion valve

Electronic expansion valve

Ventilation

Axial fan

Air flow

450m3/h

Electric resistance

2KW

Working range with resistance

-15ºC-43ºC

Working range without resistance

-7ºC-43ºC

Anti-corrosion for water tank

Magnesium anode

Anti Legionella/anti disease

Water heated up to 70ºC

Size

∮650mmX1350mm

∮650mmX1485mm

∮650mmX1790mm

∮650mmX1890mm

Net Weight

72Kg

83Kg

98Kg

110Kg

Noise

46dBA



Theodoor heat pump work principle :

The system follows carnot cycle principole. Driven by Electricity , its working substance absorbs the latent heat in the air or other low-temperature heat source , and waste heat let out of living or industry , compresses it to heat by compressor , exchange , exchange heat with water to higher the water temperature , 1 electricity can prduce heat equal to 4 electricity .it’s a new water heating equipment .

heat pump work principle

Energy Saving

Expenses comparison- 1 ton water to heat from 15℃ to 55℃

Name

Energy  Source

Energy Price

Average Expenses

Solar water heater and electronic auxiliary (Calculated for 90-120 days electronic auxiliary

Solar energy and electricity

Electricity 0.8RMB/Degree Free solar energy

13RMB/Ton

Diesel oil boiler

Diesel oil

4.9RMB/Kg

32RMB/Ton

Fuel gas water heater

Gas

6.0RMB/Kg

39rmb/Ton

Electrical water heater

Electricity

0.8RMB/degree Free solar energy

9RMB/Ton

Environmental Protection

Heat comes from air, no exhaust gas produced. Protect our environment is social morality.

According to the study indicated that, for each unit of electricity ,the consumption of fossil material to about 0.67Kg of carbon dioxide release. China’s average temperature and a five-person households use hot water sa an example, one-year results of the air to water heater, carbon dioxide emissions can be reduced to 500kg, And save a few thousand dollars per year of liquefied gas and electricity costs .

Easy Install

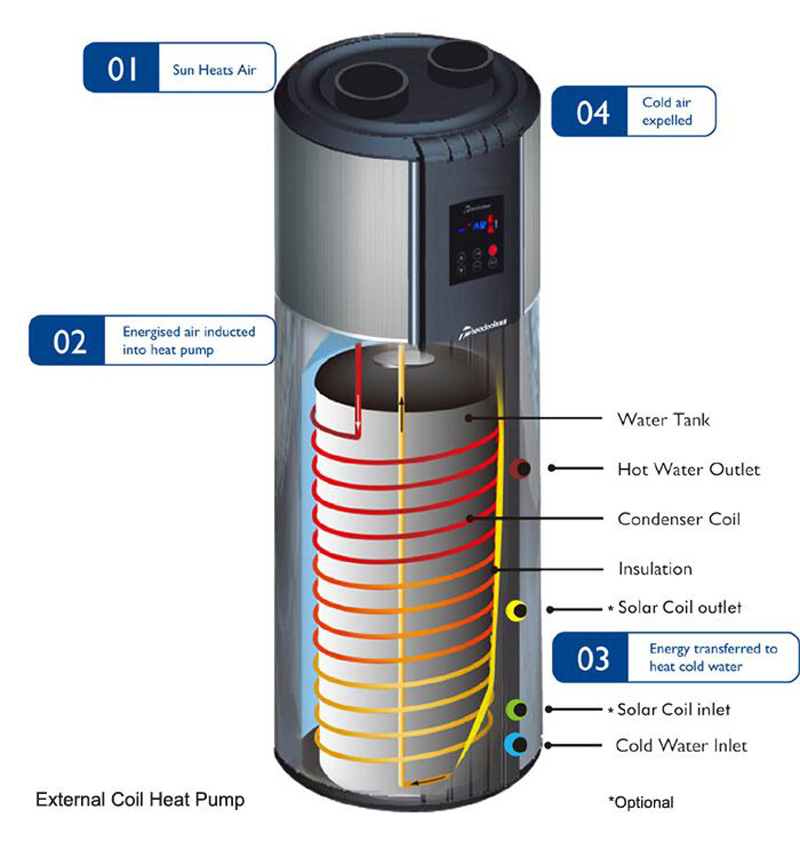

X7 Structure diagram              X7 Structure diagram
X7 available types

HOW TO CHOOSE THE SUITABLE CAPACITY?

Choose which sizes of water tank is related to the number of people using hot water, the number of bathrooms, whether there are bathtub, kitchens and other hot water consumption and so on.


HOW TO CHOOSE THE SUITABLE CAPACITY

GET THEODOOR AIR SOURCE WATER HEATER, ENJOY FREE COOL AIR FOR KITCHEN

The air source water heater unit has many installation ways, It can be installed at veranda, kitchen, storage room and garage etc.

household central hot water+ free kitchen air-conditioning integrated solutions

WHY THE AIR SOURCE HEAT PUMP IS THE MOST ENERGY SAVING WATER HEATER?

Air source heat pump is not direct heating by the heating element, but with a small amount of electric driving the main unit's compressor to work, the low temperature air is compressed to high temperature air , through the pipeline circulation system to heat the water, the power consumption is only 1/4 of the traelectric water heater.

a comparison of a family hot water consumption

starting a new era of energy saving and comfortable life


canton fair


enterprise site

INNOVATE AND CHANGE, KEEP MOVING

Focus on environmental protection and energy saving industry for 15 years, the R&D team inherited Germany strict standards and superb technology, at the same time keep innovation, had insight into the market demand, made the perfect integration of technology and application, Theodoor has been moving forward in the forefront of the times.


company honors
