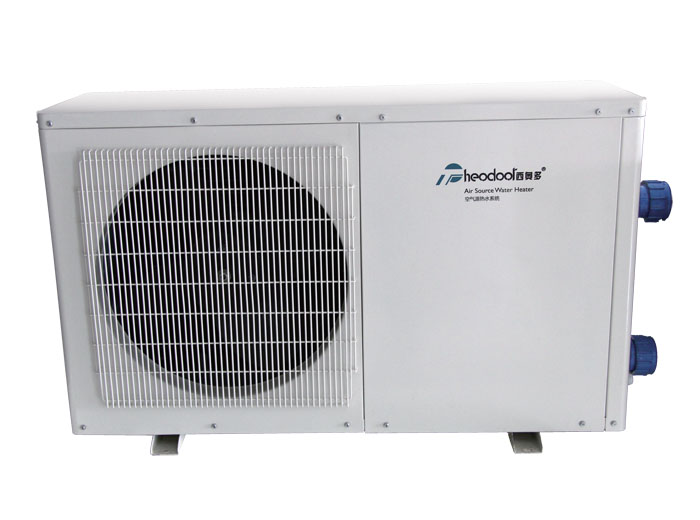

Swimming Pool Heat Pump Water Heater (Side vent)

1. Casing: Galvanized steel or optional with stainless steel.

2. Adopt Titanium heat exchanger, effectively erosion proof and durable. ensure working in high Efficiency and longer life.

3. High efficiency compressor with R410A refrigerant.

...

feature:

1. Casing: Galvanized steel or optional with stainless steel.

2. Adopt Titanium heat exchanger, effectively erosion proof and durable. ensure working in high Efficiency and longer life.

3. High efficiency compressor with R410A refrigerant.

4. Multi Rows evaporator, hydrophilic aluminum fins which could reducing drag,and the surface not easy to bear water.

5. Intelligent controller and adjustment by quick-mind microprocessor.

6. Automatic defrosting function (with four way valve inside).

7. Multiple protections to protect the compressor and the heat exchanger, like anti-freezing protection, water flow protection, over high pressure protection, over low pressure protection insufficient water flow protection etc.

Energy Saving

Expenses comparison- 1 ton water to heat from 15℃ to 55℃

Name	Energy Source	Energy Price	Average Expenses
Solar water heater and electronic auxiliary (Calculated for 90-120 days electronic auxiliary	Solar energy and electricity	Electricity 0.8RMB/Degree Free solar energy	13RMB/Ton
Diesel oil boiler	Diesel oil	4.9RMB/Kg	32RMB/Ton
Fuel gas water heater	Gas	6.0RMB/Kg	39rmb/Ton
Electrical water heater	Electricity	0.8RMB/degree Free solar energy	9RMB/Ton

Environmental Protection

Heat comes from air, no exhaust gas produced. Protect our environment is social morality.

According to the study indicated that, for each unit of electricity ,the consumption of fossil material to about 0.67Kg of carbon dioxide release. China’s average temperature and a five-person households use hot water sa an example, one-year results of the air to water heater, carbon dioxide emissions can be reduced to 500kg, And save a few thousand dollars per year of liquefied gas and electricity costs .

Recommend productsFor a number of

Domestic Integrated Heat Pump Water Heater X9 Series

Double Energy System Air Source Water Heater X6 Type

X7 Integrated Series

Domestic Split Type Heat Pump X5-E

Top

Model	Rated Power （kW）	Rated Current (A)	Rated voltage （V）	Refrigerant	Heating Capacity（kW）	Size（mm）	Noise（dBA）	Net Weight（kg）	Gross Weight（kg）	Water Coonection（DN）
RS-3.6WX	0.8	3.6	220	R417A	3.6	930×280×550	50	42	47	50
RS-4.8WX	1	4.5	220	R417A	4.8	930×280×550	52	49	54	50
RS-7WX	1.5	6.8	220	R417A	7	1000×300×620	55	65	70	50
RS-11WX	2.4	10.9	220	R417A	11	1115×425×710	56	87	105	50
