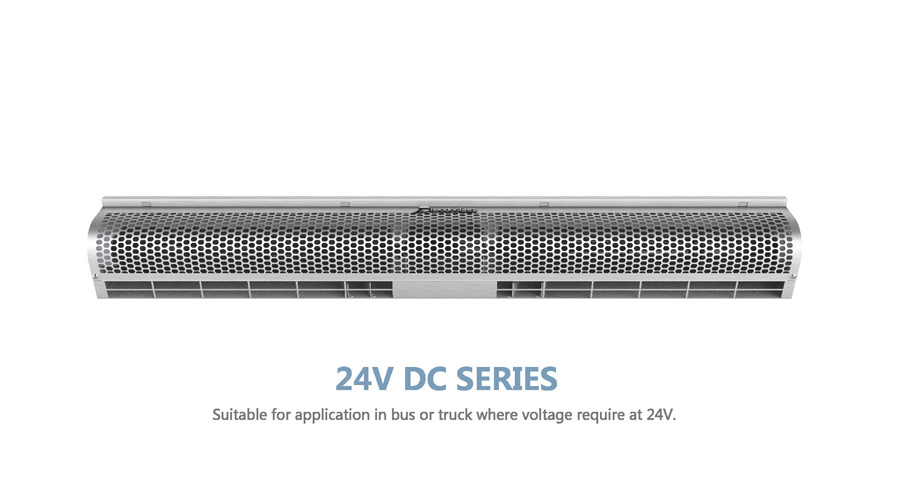

24V DC Series Air Curtain
1. Compact & slim design - The cover is made of stainless steel. it is easy installation and simple maintenance.
2. The optmized fan wheel provides stable & even air flow. it has large air volume and low noise performance.
3. The reliable designed DC motor, with overheating protector and has safety operation of 5000 hours continuously without failure.
Suitable for application in bus or truck where voltage require at 24V.
Mounting height: 2.5 - 3M.
TECHNICAL SPECIFICATIONS
| Model | BPM | Power（w） |
Air velocity (m/s) |
Noise (dB) |
Air volume (m³/h) |
Net weight (kg |
Unit size (㎜) |
| DC2408M1 | 2300 | 50 | 8.5 | 57 | 710 | 4.6 | 800x138x100 |
| DC2410M1 | 2280 | 53 | 8.5 | 57 | 850 | 5.5 | 1000x138x100 |
| DC2411M1 | 2200 | 55 | 8 | 56 | 820 | 6 | 1100x138x100 |
| DC2412M1 | 2150 | 58 | 8 | 55 | 900 | 6.5 | 1200x138x100 |
