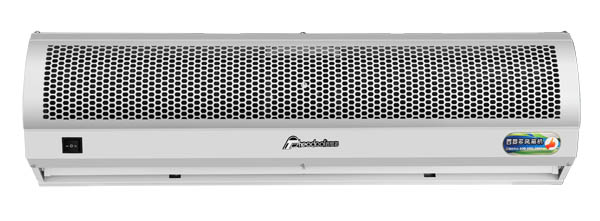

World Wind Series Air Curtain

World wind series air curtain

Features:

STEADY & SAFE

High efficient and durable motor can operate continuously 5000h without failure.

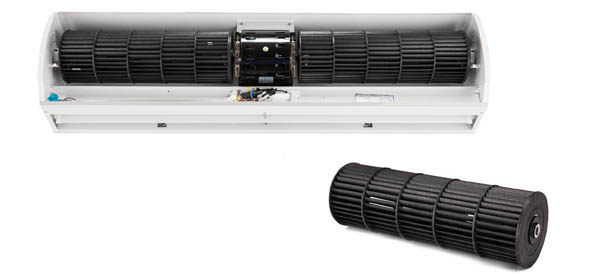

The wind wheel adopts high-precision ABS, with high speed and low noise.

COMPACT STRUCTURE

Full metal arc shape with spray powder, easy clean and never rusty.

EASY OPERATION

Selectable high and lower air velocity controlled by remote control or key switch.

Application: for the door of cafeteria, bakery, waiting room, restaurants, retail shop, department store etc.

Human Design

Through extensive research and development Theodoor has come up with a high technology solution to noise control: The result is a strong and even air-flow with minimal noise disturbance.

Comfort System

Maintaining a constant internal environment, a comfortable temperature is ensured whilst the air is kept fresh.

Infrared remote control

Remotely controlled and easy to operate. With the surge protection and power backup, it is even sager to use

Adopting optimized electrical machinery, it operates reliably, and runs safely for 5,000 consecutive hours.

TECH SPECS



Model

Dimension

(㎜)

Frequency

(Hz)

Voltage

(v~)

Input Power

(W)

Air Volume

(m3/h)

Air Velocity

(m/s)

Noise

(dB)

Net Weignt

(㎏)

FM-1209ST

900×190×210

50/60

220-240

160

11

1400

57

10

FM-1210ST

1000×190×210

50/60

220-240

180

11

1600

58

10.5

 FM-1212ST

1200×190×225

50/60

220-240

200

11

1900

58

12

 FM-1215ST

1500×190×225

50/60

220-240

230

11

2500

59

13.5

 FM-1218ST

1800×190×225

50/60

220-240

300

11

3200

60

15

 FM-1220ST

2000×190×225

50/60

220-240

300

11

3600

60

18



Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation


Principle of air curtain
