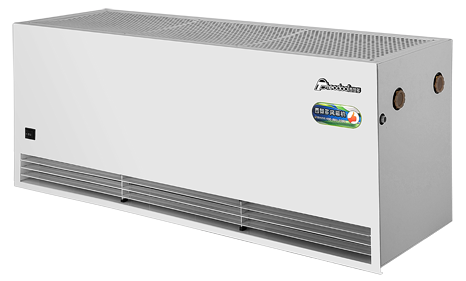

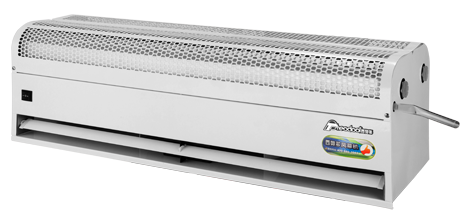

Theodoor Water Source Heat Air Curtain

Water source Heat Air Curtain

Product Features:

Water source Heat Air Curtain

METAL CASING

Full metal body, high anti-corrosion, elegant and luxurious body.

HIGH EFFICIENCY

Multi-layer compound fan coil, suitable for hot or cold water with low consumption and high heat dissipation.

Optimized motor with safe and reliable performance;

Running for 5000 hours continuously without failure.

EASY CONTROL

Adopting button switch or remote control, with high & low air velocity.

HUMANIZED DESIGN

Presed left and right side 2 ways water inlets, thus, can meet different mounting occasin.

Exclusive stainless aluninum alloy condensate water collection plate much more suitable for conmutative use in summer and winter.

Installation height 3 - 4m.

There are two water inlets spared at both sides,which can be alternative according to installation places.
Water source Heat Air Curtain


TECH SPECS


Model

Dimesion

(mm)

Frequency

Hz

Voltage

V~

MotorPower

w

PTCPower(KW)

AirVelocity

(M/S)

AirVolume

(m3/h)

Temperaturerise

(K)

Noise

db

Weight

(Kg)









H

L

H

L

H

L





RM-3509-S

900x333x280

 220

50

160

110

20

13

11

9

1400

 1100

≤55

19

RM-3512-S

1200x333x280

 220

50

200

150

28

17

11

9

1900

 1600

≤57

24

RM-3515-S

1500x333x280

 220

50

230

180

36

21

11

9

2500

 2000

≤59

29

RM-4009-S

900x375x280

 220

50

230

180

20

13

13

10

2800

2150

≤55

26

RM-4012-S

1200x375x280

 220

50

350

300

28

17

13

10

3750

 2880

≤57

31

RM-4015-S

1500x375x280

 220

50

430

380

36

21

13

10

4700

 3620

≤59

36

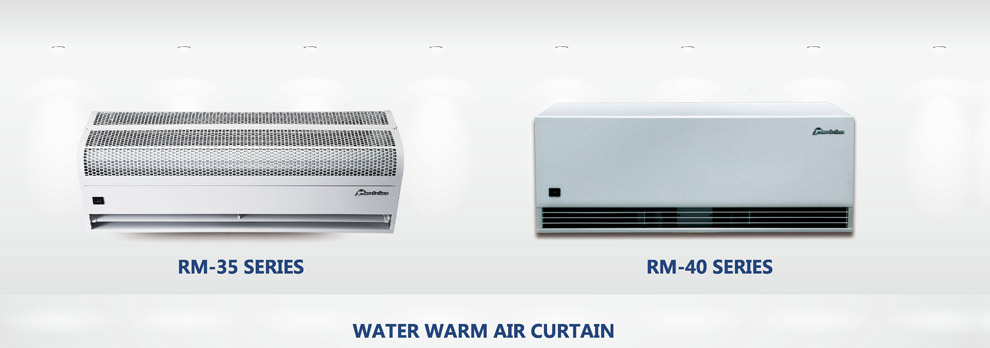

water warm air curtain

Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation

Principle of air curtain
