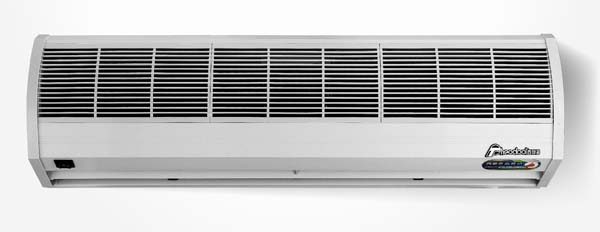

Theodoor Natural Wind Air Curtain

Natural Wind Air Curtain

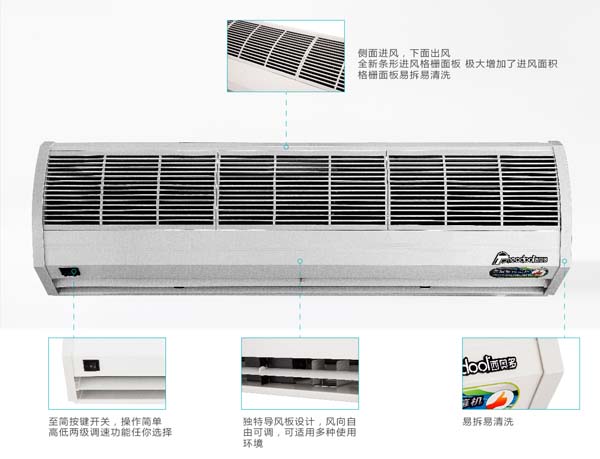

Features:

EASY OPERATION

Special design of air deflection vane enables to adjust the air direction easily. Two speeds contolled by the remote control or key switch.

SELECTED MATERIALS

Pure copper high speed motor, stable performance, running for more than 5000 hours without failure.

LIGHTWEIGHT & FASHION DESIGN

Patent design of arc shape appearance,compact & fashion.  By aluminum cover and combine with high precise ABS,never rusty and lasting clean; Lightweight compact body, about 40% lighter than the normal air curtain, suitable for glass, marble doorway.

LOW NOISE OPERATION

Adopt non-isometric quiet impellers to avoid the maximum noise frequency area. Combined with scientific airflow design, it can redece noise effectively under stable operation.

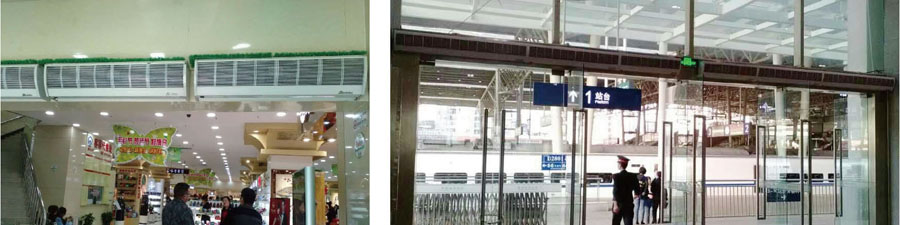

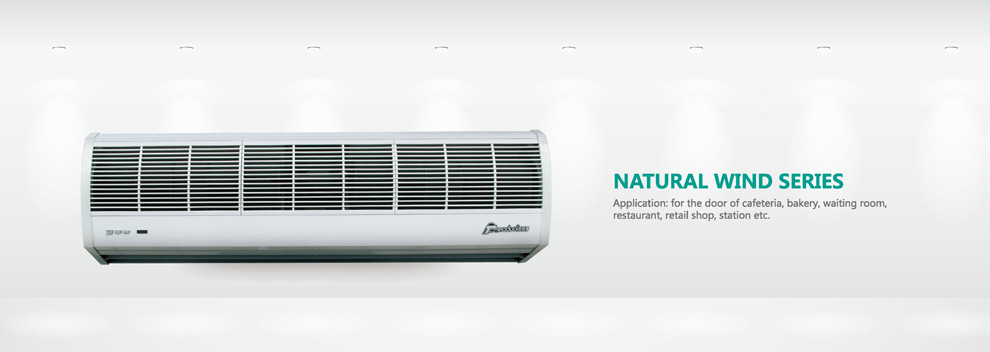

Application: for the door of cafeteria, bakery, waiting room, restaurant, retail shop, station etc.

Mounting height:2.5-3M



TECH SPECS


Model   FM-1209T FM-1210T FM-1212T FM-1215T FM-1218T FM-1509T FM-1512T FM-1515T FM-1209T/Y FM-1212T/Y FM-1215T/Y
Dimension(mm)   900×195×220 1000×195×220 1200×195×220 1500×195×220 1800×195×220 900×230×265 1200×230×265 1500×230×265 900×195×220 1200×195×220 1500×195×220
Frequency(Hz)   50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Voltage(V)   220-240 220-240 220-240 220-240 220-240 220-240 220-240 220-240 220-240 220-240 220-240
Electrical Power(W)   160 180 200 230 300 230 350 430 160 200 230
Air volume(m³/h) HI 1400 1600 1900 2500 3200 2000 2800 2200 3600 2800 1400 1900 2500

Air velocity(m/s)



HI 11 11 11 11 11 13 13 13 11 11 11
L 9 9 9 9 9 10 10 109 9 9 9
Noise(dB)   <57 <58 <58 <59 <60 <67 <69 <71 <57 <58 <59
Weight(kg)   10 10.5 12 13.5 17 11.5 14.5 16.5 10 12 13.5

Natural Wind Air Curtain


Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation


Principle of air curtain
