Explosion-Proof Type

Insulation explosion-proof

Sturdy and durable

Powerful air - flow

Application:for Refinery, Chemical factory, Electronic Factory etc.

Mounting height:3.0 - 3.5m.

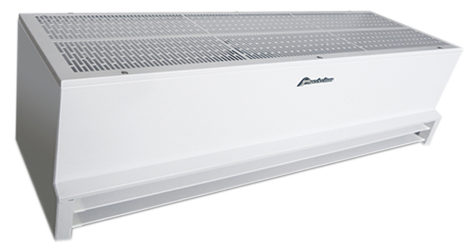

Theodoor  Air Curtain - Explosion-Proof Type

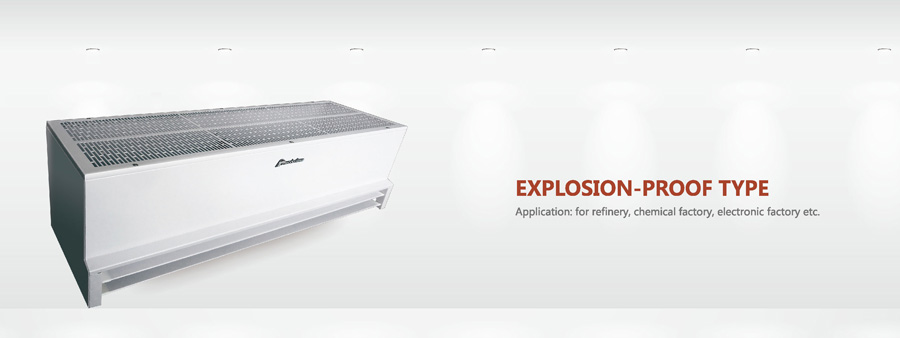

Explosion-Proof Type Air Curtain

Product Features:

INSULATION EXPLOSION-PROOF

Protection level: IP55; Explosion-proof standard: Exd Ⅱ  BT4; Insulation level: F.

STURDY AND DURABLE

Galvanized steel with powder coater, sturdy and durable which is never being deformed.

POWERFUL AIR FLOW

Optimized high velocity powerful motor runs stably.

Application: for refinery, chemical factory, electronic factory etc.

Explosion-Proof Type Air Curtain

Explosion-Proof Type Air Curtain

TECH SPECS



Model

Dimension

(㎜)

Frequency

(Hz)

Voltage

(v~)

Input Power

(W)

Air Volume

(m3/h)

Air Velocity

(m/s)

Noise

(dB)

Net Weignt

(㎏)

FB-1509S

900×352×265

50/60

380

270

2800

14

<62

25.5

FB-1512S

1200×352×265

50/60

380

350

3900

14

<64

31




Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation

Theodoor honor


Theodoor enterprise Theodoor air curtain

INGENUITY WORKMANSHIP

Theodoor air curtain


Provide you the unusual confort experience

THEODOOR AIR CURTAIN WITH LOW NOISE AND QUIETER ENVIRONMENT

Theodoor Air Curtain adopt non-isometric quiet impellers to avoid the maximum noise frequency areal. Combined with scientific airflow design, it can redece noise effectively under stable operation. The working noise is around 50 dB which is as quiet as the office.

NOISE


Powerful isolation, Efficient and energy saving

THEODOOR AIR CURTAIN FUNCTIONS

Air curtain is an air fresher equipment, to form an "invisible air door" by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.

Dust-proof, insect prevention

Theodoor air curtain creates high speed and strong air flow, preventing dust from outside efficiently, deeping clean indoor environment.

Isolate the smell

Air curtain's high speed air flow can isolate outdoor gas and oil, poisonous gas. It also resists smells from kitchen, dining hall, chemical laboratory, freezer etc. Creating a fresh and comfortable environment.

Energy saving

The air door separates outdoor from indoor, resisting the escape of indoor cold air/warm air. Thus, it can save the energy consumption of air conditioner in a huge extent. Taking an important role for keeping constant temperature and saving energy in shops, restaurants, and other entertainment places, where have huge flow of people.

Comfortable heating

Theodoor heating air curtain series, water warm/vapor air curtain series with high safety performance and prompt temperature-rising could rise and keep temperature at entrance and exit, bring comfortable and warm feeling for passengers in winter.

Theodoor air curtain functions
