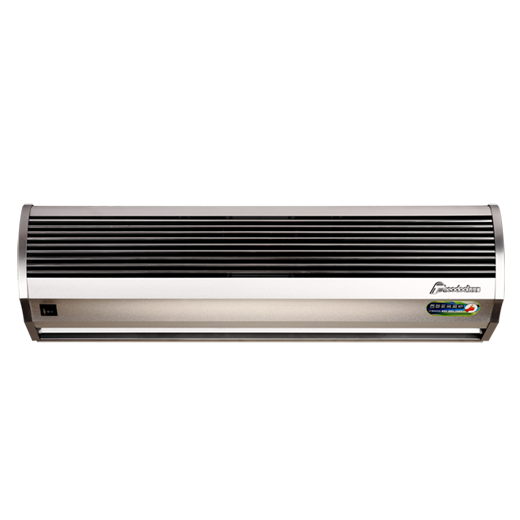

Ceiling wind Air Curtain





Recessed design

It is available to insert into the ceiling or hanging design. It’s for special situations where the glass door is unable or lacks of enough space for side installation.

Full metal outer cover and aluminum alloy air inlet panel; It is environmental-friendly and easy to be cleaned, besides, has high performance for fireproof.

High Efficient and Performance

High efficient of heat conversion, non-electric PTC Heater and fast temperature rising.
Optimized motor, tangential fan wheel and technical airway design; Low noise and long life operation.



Safety & Reliability

Triplicate Security Protection: Thermal protector, Varistor and fuse;

Automatic postpone safety protection when power off.

Installation height::3m-4m


Metal cover Ultra-silent motor and fan wheel Non-electric PTC heater Triple protection Available for customizing power source

ceiling wind heating air curtain

Ceiling wind air curtain Spec Tech:

Model

Dimension
(mm)

Voltage
(v~)

Frequency
(Hz)

Motor Power
(W)

PTC Power
(KW)

Air velocity
(m/s)

Air volume
(m3/h)

Temperature rise
(K)

Noise
(dB)

Weight
(Kg)











H

L

H

L

H

L







RM-1209CSX-3D/Y

900X235x320

380

50

160

110

6

2

10

8

1200

900

35-45

≤57

19

RM-1212CSX-3D/Y

1200x235x320

380

50

200

150

8

3





1700

1300



≤58

22

RM-1215CSX-3D/Y

1500x235x320

380

50

230

180

10

3





2200

1650



≤59

25





Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation


Principle of air curtain
