Super Thin 3 Series

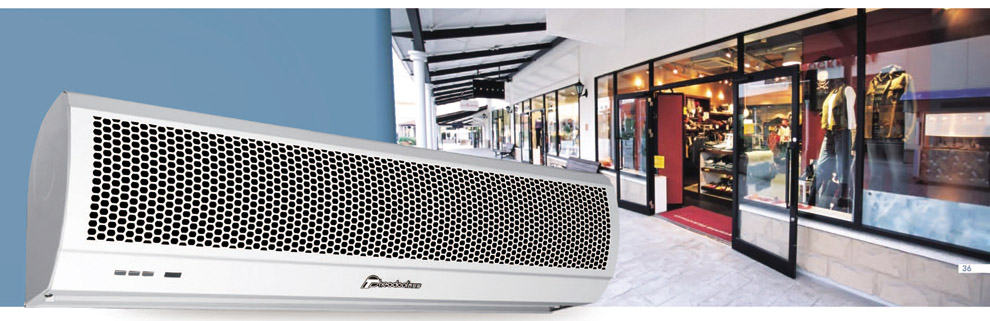

Titan 3 series air curtain

Full steel cabinet; Super thin body won't rusty; High efficient motor; Remote control;  Key switch

New design new numerical control alveolate grid, by super slim entire casing, made from galvanised steel. The entire machine has an arched geometric design, It can easy to installation and clean, save space. With a uniquely designed wind flow baffle, it can produces wind in all directions, working well in various environments. It can be operated either by remote control or at the touch of a button. It has high and low speed switch functions.

Product Features:

EASY CLEAN AND NEVER RUSTY

Super thin arc body with honeycomb front panel, which is easy to maintenance.

STABLE PERFORMANCE

Pure copper high speed motor, reliable performance can operate continuously 5000h without failure.

EASY OPERATION

Special design of air deflection vane enables to adjust the air direction easily. Two speeds controlled by the remote control or key switch.

air curtain

It can be operated eithed either by remote control or the touch of a button. it has high and low speed switch functions.

The unique birhplace flows the wind wheel air flue design, Can the high speed transient equilibrium low noise revolution.

It adopts the technology of German electrical machinery. and runs safely for 5,000 consecutive hours.

Remotely controlled and easy to operate. Wigh the surge protection and power backup, it is even safety to use.



TECH SPECS


Model

Dimension

(㎜)

Frequency

(Hz)

Voltage

(v~)

Input Power

(W)

Air Volume

(m3/h)

Air Velocity

(m/s)

Noise

(dB)

Net Weignt

(㎏)

FM-1209SA3

900×190×210

50/60

220-240

160   110

1400  1100

11   9

<57

10

FM-1210SA3

1000×190×210

50/60

220-240

180   130

1600  1300

11   9

<58

10.5

FM-1212SA3

1200×190×210

50/60

220-240

200   150

1900  1600

11   9

<58

12

FM-1215SA3

1500×190×210

50/60

220-240

230   180

2500  2000

11   9

<59

13.5

FM-1218SA3

1800×190×210

50/60

220-240

300   250

3200  2600

11   9

<60

15

FM-1220SA3

2000×190×210

50/60

220-240

350   300

3600  2900

11   9

<61

18

Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation
