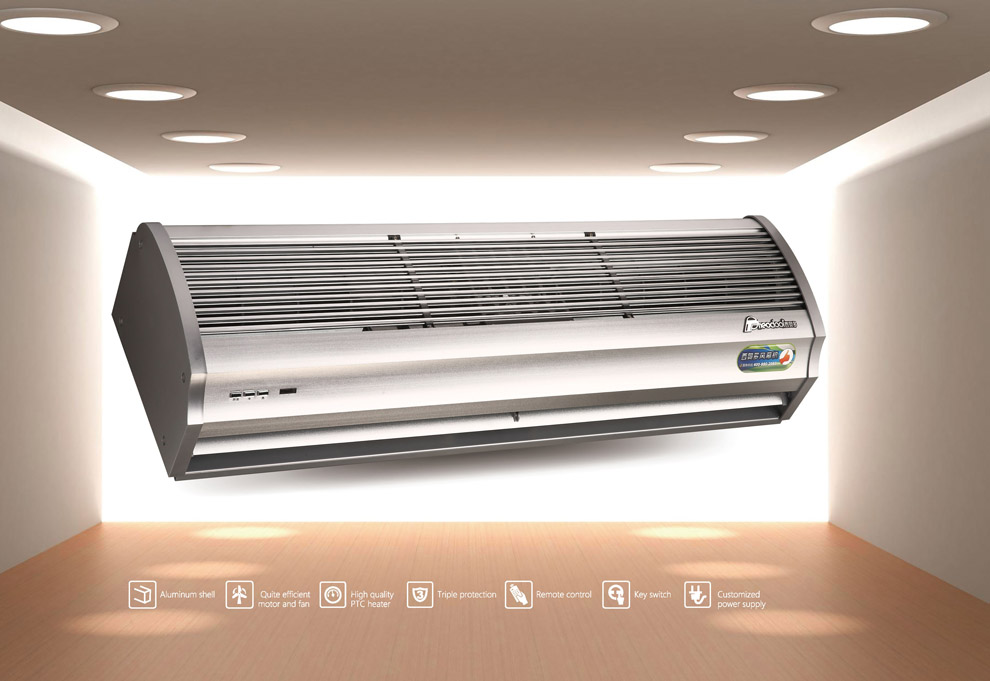

Theodoor 5G Heating Air Curtain

5G Series Heating  Air Curtain

Product Features:



5G Heating Air Curtain

CLASSICAL + LUXURY

Classical & Luxurious design of aluminum alloy outer cover with sandblast Silver; 3D appearance; new stainless strip inlet panel; Lasting clean body.

EASY CONTROL

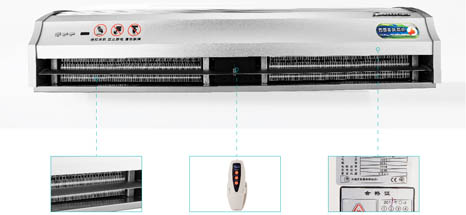

By wireless remote control, it can switch cool to heating function, adjust air speed easily.

SAFE & RELIABLE

Triple Security Protection: Thermal protector, varistor and fuse protection. Automatic postpone safety protection when power heating off.

HIGH PERFORMANCE AND EFFICIENCY

Adopt non-isometric quiet impellers, has the characteristic of evenly air outlet, high air volume and low noise. Heating function can be selected in 3 power levels, The PTC heater is uncharged, high performance, safe, prompt temperature rise, low wind resistance and long using life.

Application: for station, gymnasium,shop etc.

Mounting height: 2.5-3M

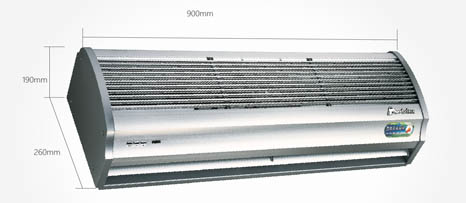

TECH SPECS


Model

Dimension

      (mm)

Voltage

(V~)

Frequency

(Hz)

Motor Power

(w)

PTC Power

(kw)

Air Velocity

(m/s)

Air Volume

(m/s)

Temperature rise

(k)

Noise

(dB)

Weight

(kg)









H

L

H

M

L

H

L

H

L







RM-1209S-3D/Y5G

900×190×260

380

50

160

110

6

4

2

9.5

8.5

1200

1000

35-45

≤57

13.5

RM-1212S-3D/Y5G

1200×190×260

380

50

200

150

8

5

3

9.5

8.5

1700

1500

35-45

≤58

16

RM-1215S-3D/Y5G

1500×190×260

380

50

230

180

10

7

3

9.5

8.5

2200

1900

35-45

≤59

18.5

RM-1218S-3D/Y5G

1800×190×260

380

50

300

250

12

8

4

9.5

8.5

2700

2400

35-45

≤60

24

RM-1209S-D/Y5G

900×190×260

220

50

160

110

6

4

2

9.5

8.5

1200

1000

35-45

≤57

13.5

RM-1212S-D/Y5G

1200×190×260

220

50

200

150

8

5

  3

9.5

8.5

1700

1500

35-45

≤58

16

RM-1215S-D/Y5G

1500×190×260

220

50

230

180

10

7

3

9.5

8.5

2200

1900

35-45

≤59

18.5


5G Heating Air Curtain

Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation


Provide you the unusual confort experience

THEODOOR AIR CURTAIN WITH LOW NOISE AND QUIETER ENVIRONMENT

Theodoor Air Curtain adopt non-isometric quiet impellers to avoid the maximum noise frequency areal. Combined with scientific airflow design, it can redece noise effectively under stable operation. The working noise is around 50 dB which is as quiet as the office.

NOISE


Powerful isolation, Efficient and energy saving

THEODOOR AIR CURTAIN FUNCTIONS

Air curtain is an air fresher equipment, to form an "invisible air door" by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.

Dust-proof, insect prevention

Theodoor air curtain creates high speed and strong air flow, preventing dust from outside efficiently, deeping clean indoor environment.

Isolate the smell

Air curtain's high speed air flow can isolate outdoor gas and oil, poisonous gas. It also resists smells from kitchen, dining hall, chemical laboratory, freezer etc. Creating a fresh and comfortable environment.

Energy saving

The air door separates outdoor from indoor, resisting the escape of indoor cold air/warm air. Thus, it can save the energy consumption of air conditioner in a huge extent. Taking an important role for keeping constant temperature and saving energy in shops, restaurants, and other entertainment places, where have huge flow of people.

Comfortable heating

Theodoor heating air curtain series, water warm/vapor air curtain series with high safety performance and prompt temperature-rising could rise and keep temperature at entrance and exit, bring comfortable and warm feeling for passengers in winter.

Theodoor air curtain functions





Powerful engine, stronger performance

DC MOTOR

Generally used for the equipment to start and control speed at high performance requirements, which need high manufacturing cost, have good performance and good adaptability for humidity and corrosion environment.

air curtain's motor


High density filter net for dustproof effectively

FILTER NET

The air inlet of the air curtain is provided with high density filter net, filtering air, blocking dust, bacteria and other unclean objects.

Filter net


Perfect unity of equipment and architecture

DOOR SWITCH TECHNOLOGY

Magnetic door switch is an additional switch device, which can be used for remote control and key switch type air curtain. The air curtain will start automatically when the door opened and shut down automatically after the door is closed.

Theodoor air curtain can be combined with weak or strong electricity door switch, and it is more convenient and eneygy-saving.

Intelligence

Inteligent induction design can start automatically when the door opened and shut down automatically after the door is closed.

Energy-saving

Timely opening, reduce energy consumption, energy saving.

Comfort

Automatic control, practical and convenience, more humanize.

Theodoor air curtain
