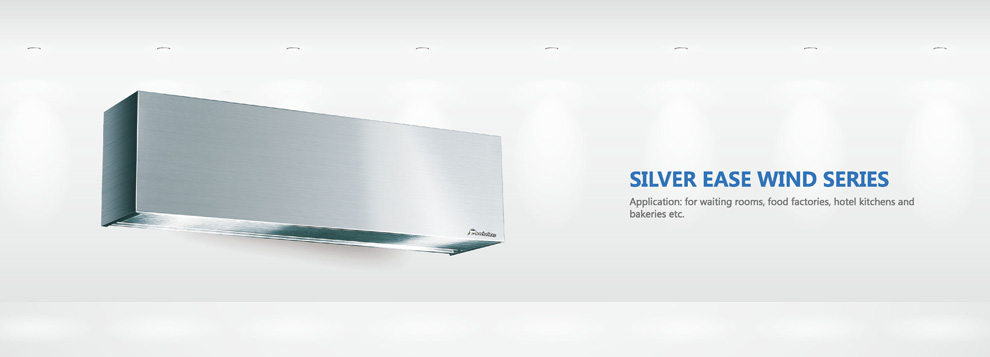

Theodoor Silver ease wind series Air Curtain

Silver ease wind series

Product Features:

With the stainless steel outer cover, it is easy to clean and has high performance for fire protection.

The wind direction can be adjusted due to its special wind grile design.

Professional motor namufacturing and imported axis.Powerful centrifugal fan wheel.

It can be used to many environments such as food products factory, bakery, kitchens of hotels etc.Installation height 3.5m to 4m.

TECH SPECS


Model

Dimension

(㎜)

Frequency

(Hz)

Voltage

(v~)

Input Power

(W)

Air Volume

(m3/h)

Air Velocity

(m/s)

Noise

(dB)

Net Weignt

(㎏)

FM-3509S-L

900×215×240

50/60

220-240

230   200

1100   600

16    13

52    49

14

FM-3512S-L

1200×215×240

50/60

220-240

290   260

1500   1200

16    13

53    50

18.5

FM-3515S-L

1500×215×240

50/60

220-240

380   350

1900   1500

16    13

55    53

25

FM-3518S-L

1800×215×240

50/60

220-240

450   420

2280   1800

16    13

57    54

30

Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation


Principle of air curtain
