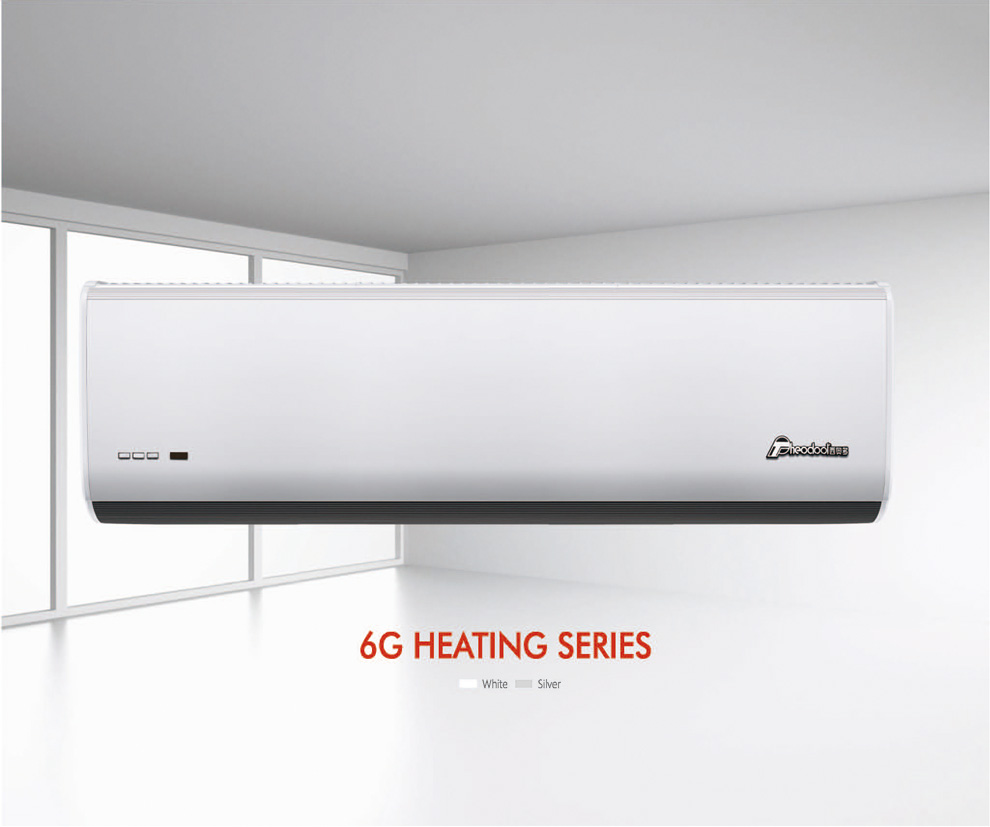

6G Heating Series air curtain

Product Description


Air duct innovation

Combine the advantage of cross-flow and centrifugal air duct, obtained the high air volume and high air velocity at the same time.

High quality performance

Patent design and upgraded performance, good appearance and better quality.

Upgraded airflow, patented technique

Apply new type cross-flow fan design, optimized internal structure to form a powerful air duct. Adopted the advantage of centrifugal airflow obtained the higher air pressure. The special design of air deflection vane and air outlet is made from aluminum, which make the air curtain more safe and reliable.

Low noise, quiet and comfortable

Innovative airflow design and special structure, which can reduce 10-20% noise.

Application:For high grade restaurants, hotels, exclusive shops and commercial buildings etc.

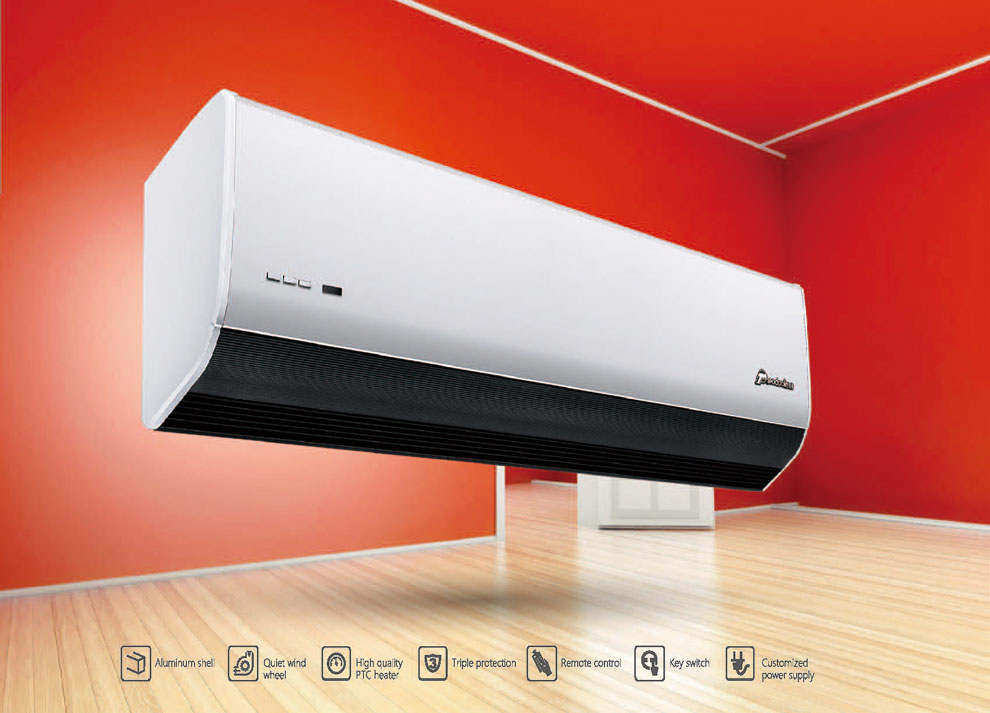

lightspot: Aluminum shell,  Quiet wind wheel, High quality PTC heater, Triple protection, Customized power supply


TECHNICAL SPECIFICATIONS

Model

Frequency

Hz

Voltage

v

MotorPower

  w

PTC heater Power

(kw)

Rising temp

(k)

Air volume

m³/h

Air velocity

m/s

Nosie

dB

Net weight

kg

Unit size

mm

        H M L   H L H L H L

RM-1209T6G-D/Y

50

220

260 200

8 5.5 2.5 35-40 1600 1300

11

9

61

59

15.5

900x218x247

 RM-1212T6G-D/Y

50

220

380 330

10 7 3.5 35-40 2400 1950

11

9

62

60

19

1200x218x247

RM-1209T6G-3D/Y

50

380

260 200

8 5.5 2.5 35-40 1600 1300

11

9

61

59

15.5

900x218x247

 RM-1212T6G-3D/Y

50

380

380 330

10 7 3.5 35-40 2400 1950

11

9

62

60

19

1200x218x247

 RM-1215T6G-3D/Y

50

380

490 400

12 8 4 35-40 3150 2550

11

9

63

61

22.5

1500x218x247




6G Heating Series air curtain

6G Heating Series air curtain

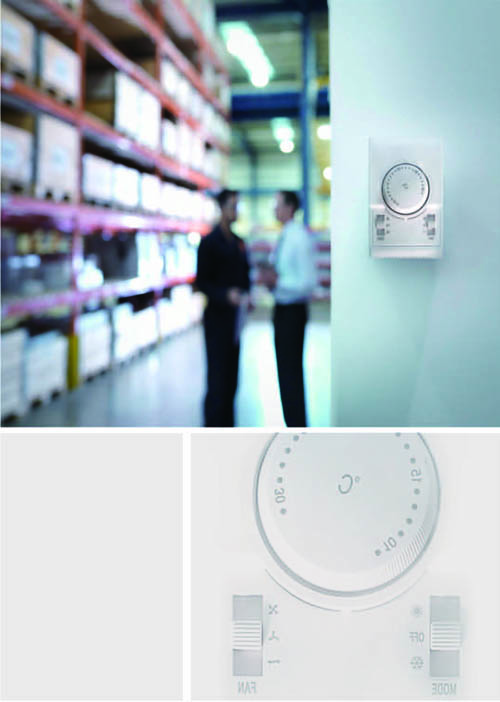

Itelligent sensing comfortable temperature

THERMOSTAT

Cool & Heating Air Curtain combines with Thermostat - intelligent, convenient, comfortable and energy saving.

Intellgent

IntelliSense, auto temperature control, free from manual operation become convenient and efficient.

Comfortable

Free setting temperature, accurately sense and control temperature, let the body feels comfortable.

Energy saving

Auto suspends heating after reach the setting temperature, reduce energy consumption.

Reliable

Quantitative digital temperature control has the characteristic of high accuracy and sensitivity.





Theodoor company

STAR BRAND

Guangzhou Theodoor technology Co., Ltd. is a professional high technology enterprise. focus on R&D and manufacture energy saving products. such as Air Curtain, Heat ng fan Conditioner and Thermal Radiant Heatec etc. As one of the star brands in Air Curtain industry Theodoor produces a variety of Air Curtains and exports to more than 80 countries and regions.


PRECISION PRODUCTION

 Founded in 2002, Theodoor is lccated in Guangzhou innovation and development new area-Sino-Singapore Krlowledge City (SSGKC) with an area of 30,000 square meters. we have modern production workshop,applying the most advanced industrial equipments and detecting instruments to provide produa manufacturing precision and stability of extremely reliable guarantee. Theodoor has fu11 series procluc which meet dlfferent customizec demand in different countrles or areas.

INNOVAnON TECHNOLOGY

With consecutive creation and innovation. Theodoor has built up national standard environmental simulation laboratory as well as air curtain long-time running laboratory. What's more, Theodcor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry Theodoor and the produas had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL SASO INMETRO and SAA certifications etc.


HARVEST HONOR

Theodoor has acquired "High-tech Enteprises", "Famous Brand" "air Curtain Star Brand",  "Guangzhou Municipal Government Key Marketing Products"," Top-ten Famous Brand", "Tpp-ten Advantages of Enterprises", "The Most Investment Value Award", "Apply Intemational Standard Product Standards Certificate" and "Standard Innovation Working Award" honors, and has won the biddings of matching projects of Guangzhou Asian Games, Beijing Olympic, Shanghai World  Expo, Wanda Plaza and Xian World Horticulture Expo etc". lnnovation, Creation, Share, Win-Win"!  Theodoor is committed to create a better green life for the global customers.




Theodoor honor


Theodoor enterprise Theodoor air curtain

INGENUITY WORKMANSHIP

Theodoor air curtain


Provide you the unusual confort experience

THEODOOR AIR CURTAIN WITH LOW NOISE AND QUIETER ENVIRONMENT

Theodoor Air Curtain adopt non-isometric quiet impellers to avoid the maximum noise frequency areal. Combined with scientific airflow design, it can redece noise effectively under stable operation. The working noise is around 50 dB which is as quiet as the office.

NOISE


Powerful isolation, Efficient and energy saving

THEODOOR AIR CURTAIN FUNCTIONS

Air curtain is an air fresher equipment, to form an "invisible air door" by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.

Dust-proof, insect prevention

Theodoor air curtain creates high speed and strong air flow, preventing dust from outside efficiently, deeping clean indoor environment.

Isolate the smell

Air curtain's high speed air flow can isolate outdoor gas and oil, poisonous gas. It also resists smells from kitchen, dining hall, chemical laboratory, freezer etc. Creating a fresh and comfortable environment.

Energy saving

The air door separates outdoor from indoor, resisting the escape of indoor cold air/warm air. Thus, it can save the energy consumption of air conditioner in a huge extent. Taking an important role for keeping constant temperature and saving energy in shops, restaurants, and other entertainment places, where have huge flow of people.

Comfortable heating

Theodoor heating air curtain series, water warm/vapor air curtain series with high safety performance and prompt temperature-rising could rise and keep temperature at entrance and exit, bring comfortable and warm feeling for passengers in winter.

Theodoor air curtain functions





Powerful engine, stronger performance

DC MOTOR

Generally used for the equipment to start and control speed at high performance requirements, which need high manufacturing cost, have good performance and good adaptability for humidity and corrosion environment.

air curtain's motor


High density filter net for dustproof effectively

FILTER NET

The air inlet of the air curtain is provided with high density filter net, filtering air, blocking dust, bacteria and other unclean objects.

Filter net


Perfect unity of equipment and architecture

DOOR SWITCH TECHNOLOGY

Magnetic door switch is an additional switch device, which can be used for remote control and key switch type air curtain. The air curtain will start automatically when the door opened and shut down automatically after the door is closed.

Theodoor air curtain can be combined with weak or strong electricity door switch, and it is more convenient and eneygy-saving.

Intelligence

Inteligent induction design can start automatically when the door opened and shut down automatically after the door is closed.

Energy-saving

Timely opening, reduce energy consumption, energy saving.

Comfort

Automatic control, practical and convenience, more humanize.

Theodoor air curtain
