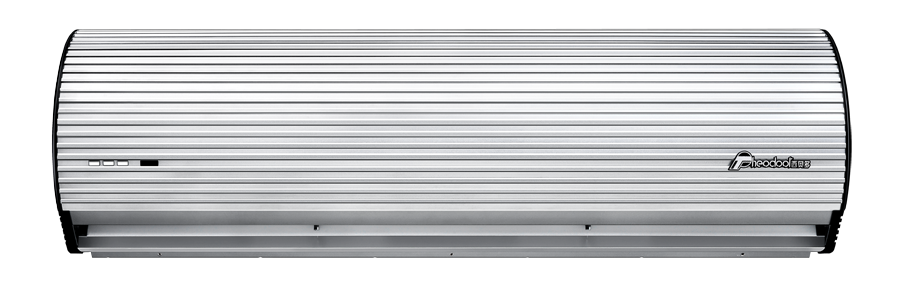

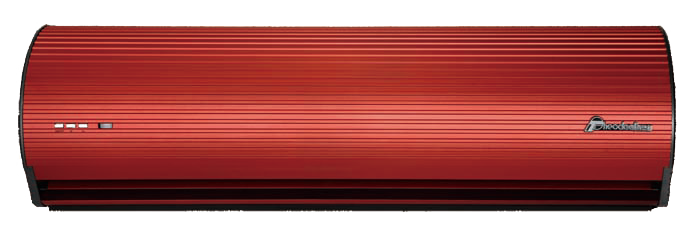

Theodoor New S5  Air Curtain,Beyond the world of dreams!

Product Feature:

Invisible door—Make life more comfortable inside

Luxury decoration Innovative design, excellent performance 5 years motor warranty
Patents Designs, slim side covers Remote control and key switch operation Ultra-quied wheel design.

TECH SPECS

Model

Dimension

(㎜)

Frequency

(Hz)

Voltage

(v~)

Input Power

(W)

Air Volume

(m3/h)

Air Velocity

(m/s)

Noise

(dB)

Net Weignt

(㎏)

FM-3509-L/Y S5

900×220×240

50/60

220-240

230   200

1100   900

16    13

52    49

13

FM-3510-L/Y S5

1000×220×240

50/60

220-240

250   220

1200   1000

16    13

52    49

13.5

FM-3512-L/Y S5

1200×220×240

50/60

220-240

290   260

1500   1200

16    13

53    50

15.5

FM-3515-L/Y S5

1500×220×240

50/60

220-240

380   350

1900   1500

16    13

55    52

20

FM-3518-L/Y S5

1800×220×240

50/60

220-240

450   420

2280   1800

16    13

57    55

23.5

FM-4009-L/Y S5

900×220×240

50/60

220-240

300   270

1400   1000

20    16

57    54

13

FM-4012-L/Y S5

1200×220×240

50/60

220-240

400   370

1900   1500

20    16

58    55

15.5

FM-4015-L/Y S5

1500×220×240

50/60

220-240

500   470

2300   1900

20    16

61    58

20




Installation

It adapted to luxury hotel, office building, gymnasium and airport terminals etc.

solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation

Principle of air curtain
