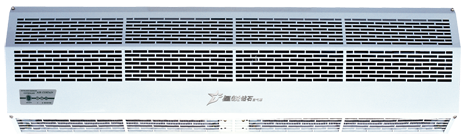

Theodoor Super Thin Heating Air Curtain

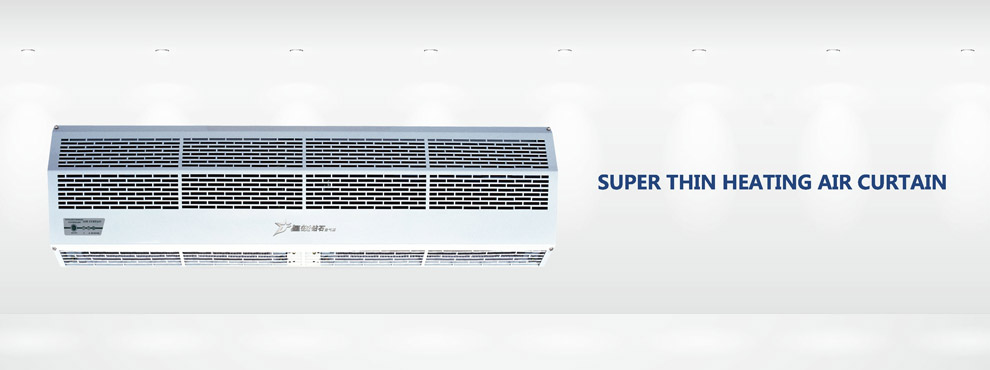

Super Thin Heating Air Curtain

Product Features:

SUPER THIN AND SLIM DESIGN

Super thin arc shaped body, metal outer cover, environmental-friendly and never get deformation.

SMART CONTROL

Remote control and button switch, Automatic shift of Hot/Cool wind by remote control; Easy and safe operation.

SAFE & RELIABLE

Triplicate Security Protection: Thermal protector, varistor and fuse protection;

Automatic postpone safety protection when power heating off.

HIGH PERFORMANCE

Uncharged PTC heater, High efficiency of heat output and conversion, Prompt-safety temperature rise, Non-oxidation, Low consumption and high output, low airflow resistance and long life operation.

Optimized air conditioner motor, running for 5000 hours continuously without failure.

Mounting height: 2.5M

TECH SPECS

Model

Dimesion

(mm)

Frequency

Hz

Voltage

V~

MotorPower

w

PTCPower(KW)

AirVelocity

(M/S)

AirVolume

(m3/h)

Temperaturerise

(K)

Noise

db

Weight

(Kg)











H

L











RM-1209S-3D/Y

900x180x215

380

50

160

110

6

1000

800

35-45

<57

14.5

RM-1212S-3D/Y

1200x180x215

380

50

200

150

8

1400

1100

35-45

<58

17.5

RM-1215S-3D/Y

1500x180x215

380

50

230

180

10

1900

1400

35-45

<59

21



Super Thin Heating Air Curtain

Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation


Principle of air curtain
