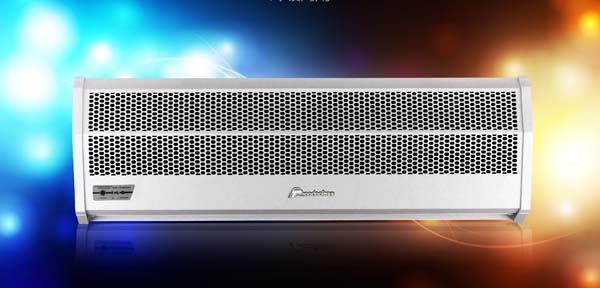

Theodoor 3G Series Hot & Cool Wind Air Curtain

3G Heating Air Curtain

Product Features:

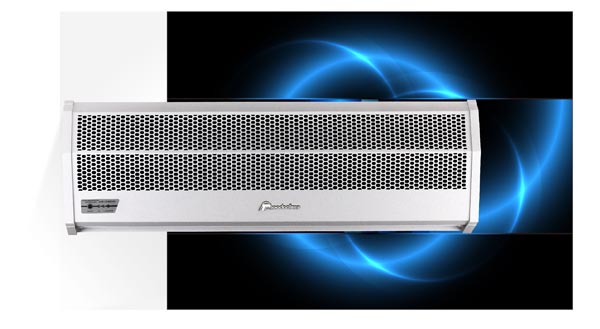

CLASSICAL SUPER THIN DESIGN

Super thin arc-shaped body; Numerical controlled honey comb panel; Front side without viewable screw; whole metal outer cover; Environmental-friendly and never deformation; Fireproof and never fade.

HIGH PERFORMANCE

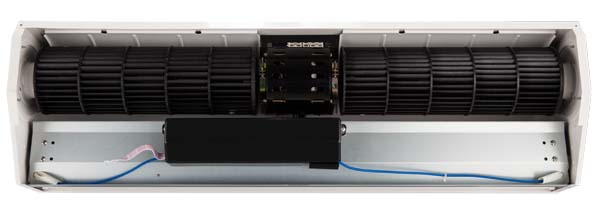

Heating function can be selected in 3 power levels. Superior PTC heater, high heat conversion, Safe and prompt temperature rise; little wind restistance and long life working.

SMART CONTROL

Update remote control and button switch; Auto-shift of cold & hot wind by remote control, with High/Low air velocity.

SAFE & RELIABLE

Triple Security Protection: Thermal protector, varistor and fuse protection; Automatic postpone safety protection when power heating off;

*Large power needs to install a control boc.

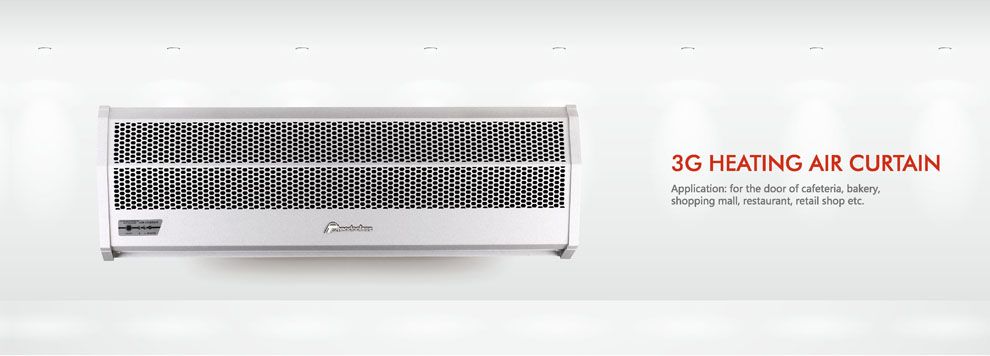

Applicatiion: for the dor of cafeteria, bakery, shopping mall, restaurant, retail shop etc.

Mounting height:2.5-3M.

TECH SPECS


Model

Dimesion

(mm)

Voltage

  (V~)

Frequency  (Hz)

Motor Power

(W)

PTC Power

(Kw)

Air Velocity

  (M/S)

Air Volume

 (m3/h)

Temperature rise

(k)

    Noise

(dB)

Weight

(Kg)

H

L

H

M

L

H

L

H

L





RM-1209S-3D/Y3G

900x195x265

380

50

160

110

6

4

2

 8.5

 7.5

1000

900

35-45

<57

14.5

RM-1212S-3D/Y3G

1200x195x265

380

50

200

150

8

5

3

1500

1300

35-45

<58

17

RM-1215S-3D/Y3G

1500x195x265

380

50

230

180

10

7

3

1900

1700

35-45

<59

20.5

RM-1218S-3D/Y3G

1800x195x265

380

50

300

250

12

8

4

2400

2100

35-45

<60

24

RM-1209S-D/Y3G

900x195x265

220

50

160

110

6

4

2

8.5

7.5

1000

900

35-45

<57

14.5

RM-1212S-D/Y3G

1200x195x265

220

50

200

150

8

5

3

1500

1300

35-45

<58

17

RM-1215S-D/Y3G

1500x195x265

220

50

230

180

10

7

3

1900

1700

35-45

<59

20.5

RM-1209S-3D/3G

900x195x265

380

50

160

110

11

7

5

900

700

90-100

<57

14.5

RM-1212S-3D/3G

1200x195x265

380

50

200

150

15

1300

1100

90-100

<58

17

RM-1215S-3D/3G

1500x195x265

380

50

230

180

19

1700

1500

90-100

<59

20.5

3G Heating Air Curtain



Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against  smoke and noxious fumes.
  • Accelerate air circulation


风幕机原理
