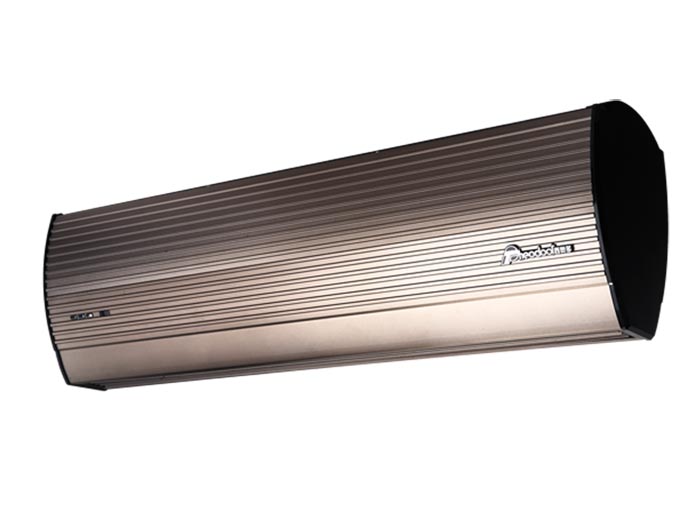

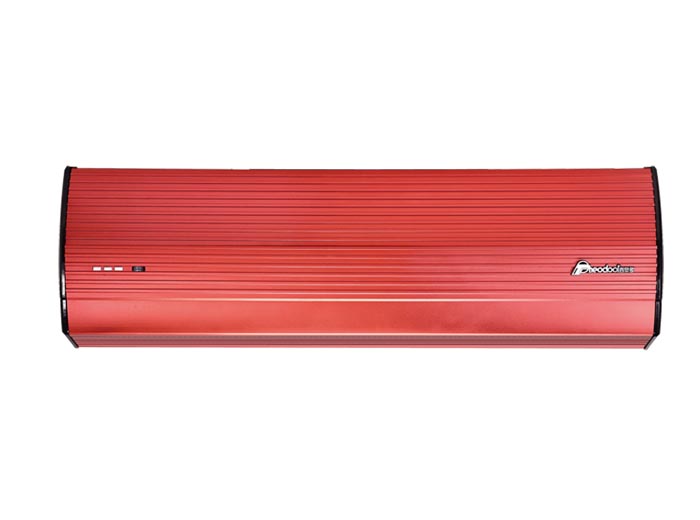

Magic wind hot air curtain

Super Slim Body

High Efficiency

Safety & Reliability

Smart Control



Super Slim Body

Aluminum alloy arc-shaped style, extremely slim body; Luxurious and elegant; High performance of fire proof, easy and convenient dismounting;

High Efficiency

High heat conversion, Safe electricity-free PTC heater, Prompt temperature rise;

Air conditioner motor bearing and low noise, aluminum alloy quite fan wheel, and high performance.

Safety & Reliability

Triplicate Security Protection: Thermal protector, Varistor and fuse;

Automatic postpone safety protection when power off;

Smart Control

Intelligent remote control operation and button switch; Auto-shift of cold & hot wind by remote control.

Magic wind hot air curtain

Aluminum-alloy wire-drawing cylindrical outer cover Aluminum-alloy fan wheel Non-electric PTC heater Tripe protection Operated by remote control Button switch Available for customizing power source

Magic wind hot air curtain Tech Specs:

Model

Dimension

Frequency

Voltage

Motor Power

Power

Temperature rise

Air velocity

Air volume

Noise

Net weight









H      L





H      L

H       L





RM-3509S-3D/Y

900×215×280

50

380

80    65

12

90-100

7      5

1100   800

<53

13.5

RM-3512S-3D/Y

1200×215×280

50

380

110   80

16

90-100

7      5

1500  1100

<54

16.5

RM-3515S-3D/Y

1500×215×280

50

380

120  90

20

90-100

7      5

2000  1400

<56

19.5





Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation


Principle of air curtain
