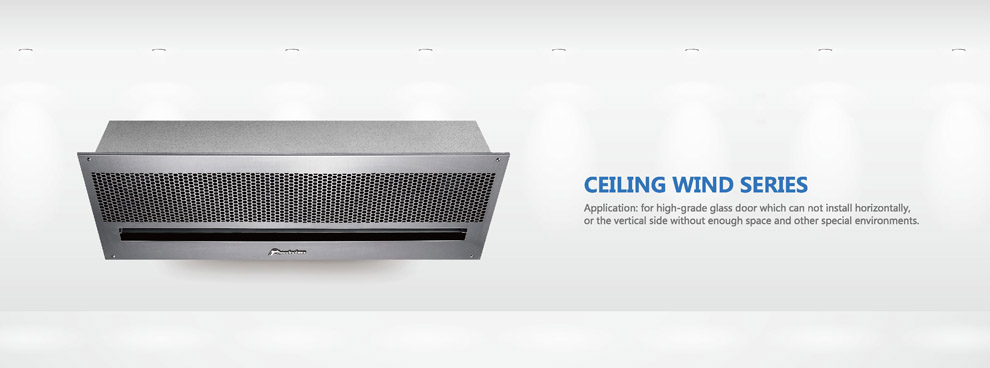

Theodoor Ceiling Wind Air Curtain

Ceiling Wind Series

Product Features:

EASY CLEAN AND FIREPROOF

Full steel cabinet and stainless steel air inlet covers, rust-proof and easy clean;

EASY OPERATION

Selectable high and lower air velocity controlled by remote control or key switch;

RECESSED IN CEILING DESIGN

Recessed in ceiling or hang on ceiling type design, it's for special situations where the glass door is unable or lacks of enough space for side installation.

Apply high velocity motor, centrifugal turbine fan and scientific air duct design; powerful air pressure and lower noise operation.

Application: for high-grade glass door which can not install horizontally, or the vertical side without enough space and other special environments.

Mounting height:3.5-4M.

TECH SPECS



Model

Dimension

(㎜)

Frequency

(Hz)

Voltage

(v~)

Input Power

(W)

Air Volume

(m3/h)

Air Velocity

(m/s)

Noise

(dB)

Net Weignt

(㎏)

FM-3509CS

900×235×320

50/60

220-240

230  200

16   13

1100  900

52    49

17

FM-3512CS

1200×235×320

50/60

220-240

290  260

16   13

1500  1200

53    50

22

FM-3515CS

1500×235×320

50/60

220-240

380  350

16   13

1900  1500

55    52

27

FM-4009CS

900×235×320

50/60

220-240

300  270

20   16

1400  1000

57    54

17

FM-4012CS

1200×235×320

50/60

220-240

400  370

20   16

1900  1500

58    55

22

FM-4015CS

1500×235×320

50/60

220-240

500  470

20   16

2300  1900

61    58

27

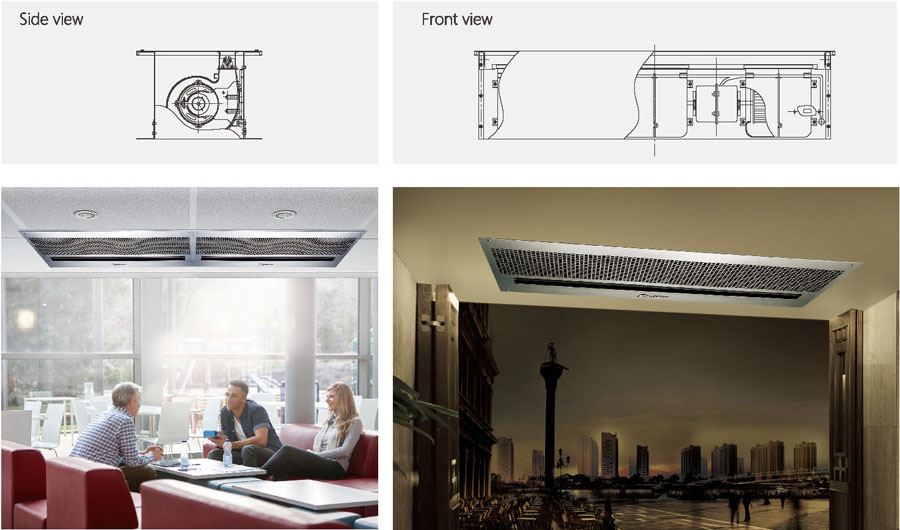

Ceiling air curtain:

1. The bottom air-inlet and air-outlet designed for our ceiling air curtain makes it suitable for installation in the ceiling.

2. The stainless steel design of the outer casing is easy to clean and has high performance fire protection.

3. The irregular distancing and ultra-quiet wind of our ceiling air curtain can produce a powerful airflow and runs low noise.

4. The mounting height of ceiling air curtain ranges from 2.5m to 3.5m.

Our ceiling air curtain has suitable application in cafeteria, bakery, waiting room, restaurants, large store, department store, sports centre, subway, and museum.

ceiling air curtain

Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation


Provide you the unusual confort experience

THEODOOR AIR CURTAIN WITH LOW NOISE AND QUIETER ENVIRONMENT

Theodoor Air Curtain adopt non-isometric quiet impellers to avoid the maximum noise frequency areal. Combined with scientific airflow design, it can redece noise effectively under stable operation. The working noise is around 50 dB which is as quiet as the office.

NOISE


Powerful isolation, Efficient and energy saving

THEODOOR AIR CURTAIN FUNCTIONS

Air curtain is an air fresher equipment, to form an "invisible air door" by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.

Dust-proof, insect prevention

Theodoor air curtain creates high speed and strong air flow, preventing dust from outside efficiently, deeping clean indoor environment.

Isolate the smell

Air curtain's high speed air flow can isolate outdoor gas and oil, poisonous gas. It also resists smells from kitchen, dining hall, chemical laboratory, freezer etc. Creating a fresh and comfortable environment.

Energy saving

The air door separates outdoor from indoor, resisting the escape of indoor cold air/warm air. Thus, it can save the energy consumption of air conditioner in a huge extent. Taking an important role for keeping constant temperature and saving energy in shops, restaurants, and other entertainment places, where have huge flow of people.

Comfortable heating

Theodoor heating air curtain series, water warm/vapor air curtain series with high safety performance and prompt temperature-rising could rise and keep temperature at entrance and exit, bring comfortable and warm feeling for passengers in winter.

Theodoor air curtain functions





Powerful engine, stronger performance

DC MOTOR

Generally used for the equipment to start and control speed at high performance requirements, which need high manufacturing cost, have good performance and good adaptability for humidity and corrosion environment.

air curtain's motor


High density filter net for dustproof effectively

FILTER NET

The air inlet of the air curtain is provided with high density filter net, filtering air, blocking dust, bacteria and other unclean objects.

Filter net


Perfect unity of equipment and architecture

DOOR SWITCH TECHNOLOGY

Magnetic door switch is an additional switch device, which can be used for remote control and key switch type air curtain. The air curtain will start automatically when the door opened and shut down automatically after the door is closed.

Theodoor air curtain can be combined with weak or strong electricity door switch, and it is more convenient and eneygy-saving.

Intelligence

Inteligent induction design can start automatically when the door opened and shut down automatically after the door is closed.

Energy-saving

Timely opening, reduce energy consumption, energy saving.

Comfort

Automatic control, practical and convenience, more humanize.

Theodoor air curtain
