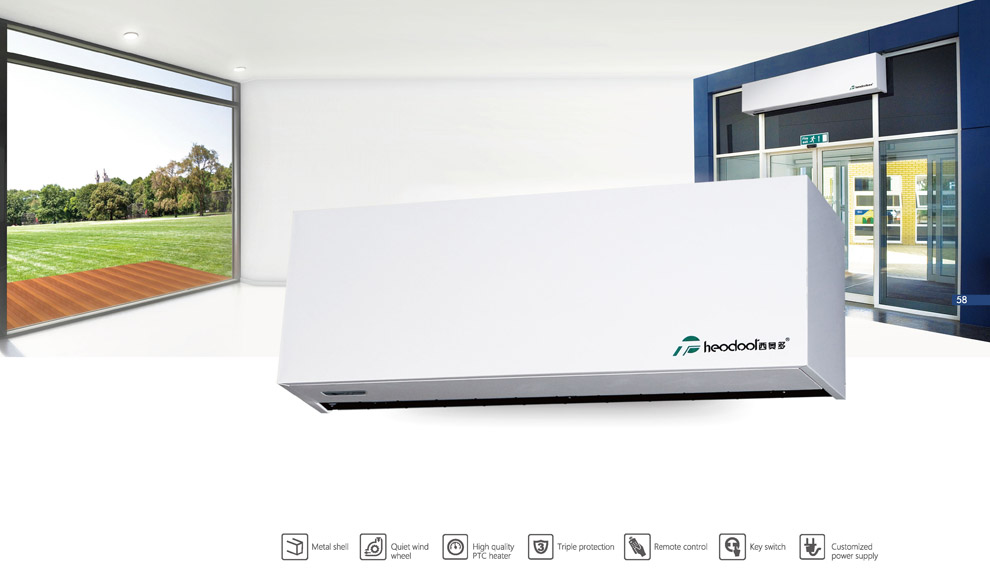

Centrifugal Type High Power Air Curtain

Centrifugal Type High Power Air Curtain

Product Features:

METAL CASING

Whole metal outer cover, rust-proof and easy clean. Quiet centrifugal fan wheel and optimized motor ensure strong wind and stable operation.

SAFE & RELIABLE

Triplicate Security Protection: Thermal protector, varistor and fuse protection; Automatic postpone safety protection when power heating off;

HIGH EFFICIENCY

Fast teating, long life PTC heater, High conversion efficiency, Safety without light fire, Non-oxidation.

SMART CONTROL

Updated remote control and button switch; Auto-shift of cold & hot wind by remote control, with High/Low air velocity.

TECH SPECS


Model

Dimesion
(mm)

Voltage
(V)

Frequency
(Hz)

MotorPower
(W)

PTC Power
(Kw)

AirVelocity
(M/S)

Air Volume
(m3/h)

Temperaturerise
(k)

    Noise
(dB)

Weight
(Kg)

H

L



H

L

H

L





RM-4009S-3D/Y

900*350*240

  380

   50

410

350

12

14

11

1980

1680

40-55

<55

26

RM-4012S-3D/Y

1200*350*240

380

50

520

460

16

2690

2270

40-55

<56

32.5

RM-4015S-3D/Y

1500*350*240

380

50

670

610

20

3390

2870

40-55

<58

41.5


Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation


风幕机原理
