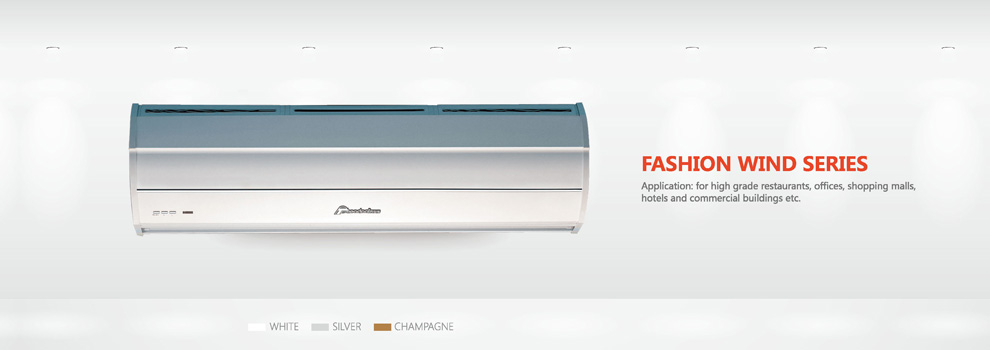

Theodoor Fashion Wind Series Air Curtain

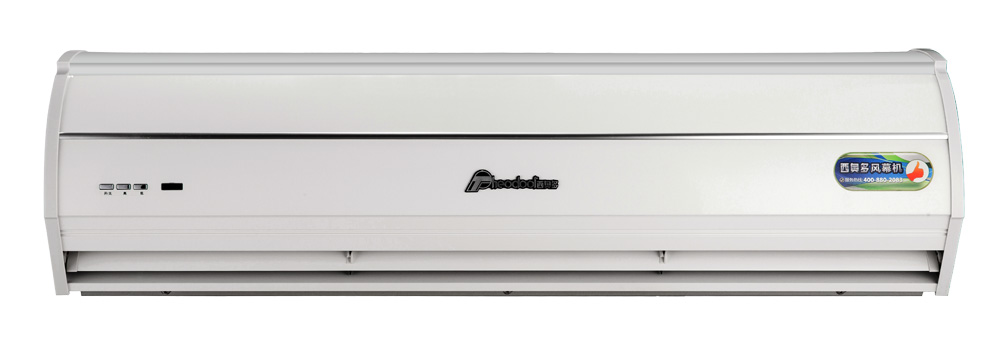

Fashion wind series air curtain

Product Features:

FASHION DESIGN

Outside cover without screw, patent design of arc shape appearance, compact & fashion

CENTRIFUGAL FAN MOTOR

Low noise centrifugal fan, with high air pressure and adjustable air direction.

EASY OPERATION

Available with remote control and key switch; with selectable high and lower air velocity.

LUXURY MATERIALS

By aluminum cover body and combine with high precis ABS, never rusty and easy disassembly; high velocity motor can operate continuously 5000h without failure.

Application: for high grade restaurants, offices, shopping malls, hotels and commercial buildings etc;

Mounting height: 3.5-4M.

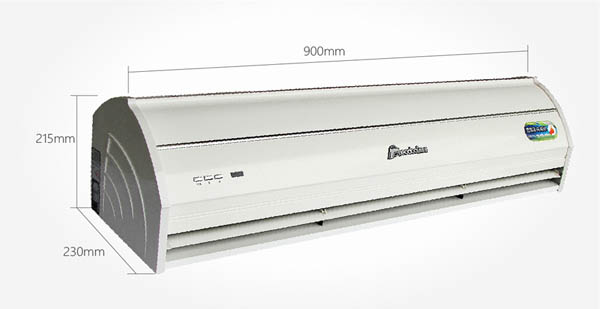

Fashion wind series air curtain



TECH SPECS


Model

Dimension

(㎜)

Frequency

(Hz)

Voltage

(v~)

Input Power

(W)

Air Volume

(m3/h)

Air Velocity

(m/s)

Noise

(dB)

Net Weignt

(㎏)

 FM-3509-L/Y

900×215×230

50/60

220-240

200-230

900-1100

13-16

49-52

13

FM-3510-L/Y

1000×215×230

50/60

220-240

220-250

1000-1200

13-16

49-52

13.5

FM-3512-L/Y

1200×215×230

50/60

220-240

260-290

1200-1500

13-16

50-53

15.5

FM-3515-L/Y

1500×215×230

50/60

220-240

350-380

1500-1900

13-16

52-55

20

FM-3518-L/Y

1800×215×230

50/60

220-240

420-450

1800-2280

13-16

54-57

23.5

FM-4009-L/Y

900×215×230

50/60

220-240

270-300

1000-1400

16-20

54-57

13

FM-4012-L/Y

1200×215×230

50/60

220-240

370-400

1500-1900

16-20

55-58

15.5

FM-4015-L/Y

1500×215×230

50/60

220-240

470-500

1900-2300

16-20

58-61

20

Fashion Wind Series Air Curtain

Fashion wind series air curtain

Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation



Provide you the unusual confort experience

THEODOOR AIR CURTAIN WITH LOW NOISE AND QUIETER ENVIRONMENT

Theodoor Air Curtain adopt non-isometric quiet impellers to avoid the maximum noise frequency areal. Combined with scientific airflow design, it can redece noise effectively under stable operation. The working noise is around 50 dB which is as quiet as the office.

NOISE


Powerful isolation, Efficient and energy saving

THEODOOR AIR CURTAIN FUNCTIONS

Air curtain is an air fresher equipment, to form an "invisible air door" by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.

Dust-proof, insect prevention

Theodoor air curtain creates high speed and strong air flow, preventing dust from outside efficiently, deeping clean indoor environment.

Isolate the smell

Air curtain's high speed air flow can isolate outdoor gas and oil, poisonous gas. It also resists smells from kitchen, dining hall, chemical laboratory, freezer etc. Creating a fresh and comfortable environment.

Energy saving

The air door separates outdoor from indoor, resisting the escape of indoor cold air/warm air. Thus, it can save the energy consumption of air conditioner in a huge extent. Taking an important role for keeping constant temperature and saving energy in shops, restaurants, and other entertainment places, where have huge flow of people.

Comfortable heating

Theodoor heating air curtain series, water warm/vapor air curtain series with high safety performance and prompt temperature-rising could rise and keep temperature at entrance and exit, bring comfortable and warm feeling for passengers in winter.

Theodoor air curtain functions





Powerful engine, stronger performance

DC MOTOR

Generally used for the equipment to start and control speed at high performance requirements, which need high manufacturing cost, have good performance and good adaptability for humidity and corrosion environment.

air curtain's motor


High density filter net for dustproof effectively

FILTER NET

The air inlet of the air curtain is provided with high density filter net, filtering air, blocking dust, bacteria and other unclean objects.

Filter net


Perfect unity of equipment and architecture

DOOR SWITCH TECHNOLOGY

Magnetic door switch is an additional switch device, which can be used for remote control and key switch type air curtain. The air curtain will start automatically when the door opened and shut down automatically after the door is closed.

Theodoor air curtain can be combined with weak or strong electricity door switch, and it is more convenient and eneygy-saving.

Intelligence

Inteligent induction design can start automatically when the door opened and shut down automatically after the door is closed.

Energy-saving

Timely opening, reduce energy consumption, energy saving.

Comfort

Automatic control, practical and convenience, more humanize.

Theodoor air curtain
