Theodoor Refrigerator Door Centrifugal Series Air Curtain

Refrigerator Door Centrifugal Series Air Curtain

Product Features:

POWERFUL AIR-FLOW

Optimized fan wheel with powerful air volume and low noise performance.

HIGH PROTECTION CLASS

Porfessional motor with IP54 protection clss.

EASY CLEAN &FIREPROOF

Stainless steel(#304) outer cover and metal blower, which is easy to clean and has high performance of fire protection.

STABLE PERFORMANCE

Reliable quality performance operates 5000 hours continuously without failure.

1, Stainless steel outer cover, easy to clean and has high performance of fire protection.

2, Professional motor with IP54 protection standard.

3, Optimized fan wheel with large air volume and low noise; Compact construction.

4, Reliable designed motor operates 5000 hours continuously without any defects.

5, By Centrifugal fan design create powerful air volume.

6, Suitable for places: Food products factory, Cold storage room, Bakery, Warehouse etc.

7, Installation height: 3.5m-4m

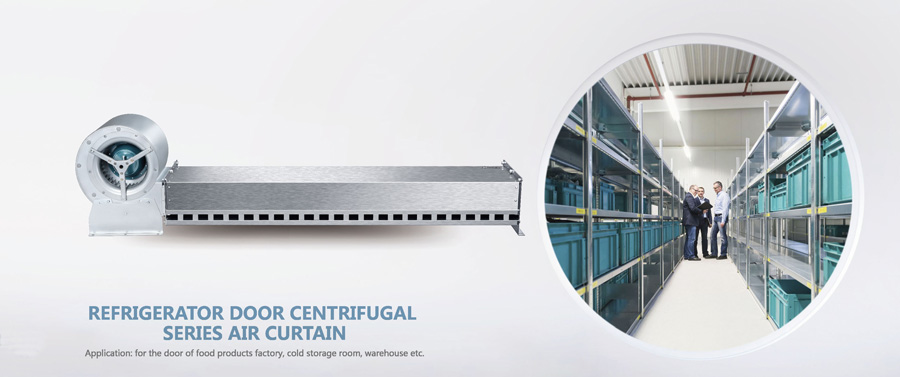

Refrigerator Door Centrifugal Series Air Curtain

TECH SPECS

Model

Dimension

Freq.

Voltage

Max input power

Air volume (m3/h)

Air velocity

Noise

Net weight

--

(mm)

(Hz)

(V~)

(W)

HI

(m/s)

(dB)

(kg)

FM-2515LK

1920×480×365

50/60

380

670

1400

18

70

29

FM-2518LK

2220×480×365

50/60

380

740

1650

17

70

31.5

FM-2520LK

2420×480×365

50/60

380

800

1850

16.5

70

33.5

Solution


  • Making life more comfortable inside

The Theodoor Air Curtain produces a high speed air current, dividing the inside and outside of the room into two independent temperature zones with the result that levels of interior air conditioning are maintained and the air is purified whilst energy is saved. Summer heat, winter cold, dust, insects, smoke, unpleasant odors and exhaust fumes are all kept out.

  • Prevent the loss of cool or warm air whilst economizing on electricity.
  • Efficient dust and insect-proofing..
  • Protect against smoke and noxious fumes.
  • Accelerate air circulation



Theodoor company

STAR BRAND

Guangzhou Theodoor technology Co., Ltd. is a professional high technology enterprise. focus on R&D and manufacture energy saving products. such as Air Curtain, Heating fan Conditioner and Thermal Radiant Heater etc. As one of the star brands in Air Curtain industry Theodoor produces a variety of Air Curtains and exports to more than 80 countries and regions.


PRECISION PRODUCTION

 Founded in 2002, Theodoor is lccated in Guangzhou innovation and development new area-Sino-Singapore Krlowledge City (SSGKC) with an area of 30,000 square meters. we have modern production workshop,applying the most advanced industrial equipments and detecting instruments to provide produa manufacturing precision and stability of extremely reliable guarantee. Theodoor has fu11 series procluc which meet dlfferent customizec demand in different countrles or areas.

INNOVAnON TECHNOLOGY

With consecutive creation and innovation. Theodoor has built up national standard environmental simulation laboratory as well as air curtain long-time running laboratory. What's more, Theodcor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry Theodoor and the produas had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL SASO INMETRO and SAA certifications etc.


HARVEST HONOR

Theodoor has acquired "High-tech Enteprises", "Famous Brand" "air Curtain Star Brand",  "Guangzhou Municipal Government Key Marketing Products"," Top-ten Famous Brand", "Tpp-ten Advantages of Enterprises", "The Most Investment Value Award", "Apply Intemational Standard Product Standards Certificate" and "Standard Innovation Working Award" honors, and has won the biddings of matching projects of Guangzhou Asian Games, Beijing Olympic, Shanghai World  Expo, Wanda Plaza and Xian World Horticulture Expo etc". lnnovation, Creation, Share, Win-Win"!  Theodoor is committed to create a better green life for the global customers.




Theodoor honor


Theodoor enterprise Theodoor air curtain

INGENUITY WORKMANSHIP

Theodoor air curtain


Provide you the unusual confort experience

THEODOOR AIR CURTAIN WITH LOW NOISE AND QUIETER ENVIRONMENT

Theodoor Air Curtain adopt non-isometric quiet impellers to avoid the maximum noise frequency areal. Combined with scientific airflow design, it can redece noise effectively under stable operation. The working noise is around 50 dB which is as quiet as the office.

NOISE


Powerful isolation, Efficient and energy saving

THEODOOR AIR CURTAIN FUNCTIONS

Air curtain is an air fresher equipment, to form an "invisible air door" by running of high speed motor with cross flow or centrifugal blower. It has been widely used in electronic, medicine making, food processing, precision processing, chemical, business areas and other industry. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Air curtain is also called air door, air barrier etc.

Dust-proof, insect prevention

Theodoor air curtain creates high speed and strong air flow, preventing dust from outside efficiently, deeping clean indoor environment.

Isolate the smell

Air curtain's high speed air flow can isolate outdoor gas and oil, poisonous gas. It also resists smells from kitchen, dining hall, chemical laboratory, freezer etc. Creating a fresh and comfortable environment.

Energy saving

The air door separates outdoor from indoor, resisting the escape of indoor cold air/warm air. Thus, it can save the energy consumption of air conditioner in a huge extent. Taking an important role for keeping constant temperature and saving energy in shops, restaurants, and other entertainment places, where have huge flow of people.

Comfortable heating

Theodoor heating air curtain series, water warm/vapor air curtain series with high safety performance and prompt temperature-rising could rise and keep temperature at entrance and exit, bring comfortable and warm feeling for passengers in winter.

Theodoor air curtain functions





Powerful engine, stronger performance

DC MOTOR

Generally used for the equipment to start and control speed at high performance requirements, which need high manufacturing cost, have good performance and good adaptability for humidity and corrosion environment.

air curtain's motor
