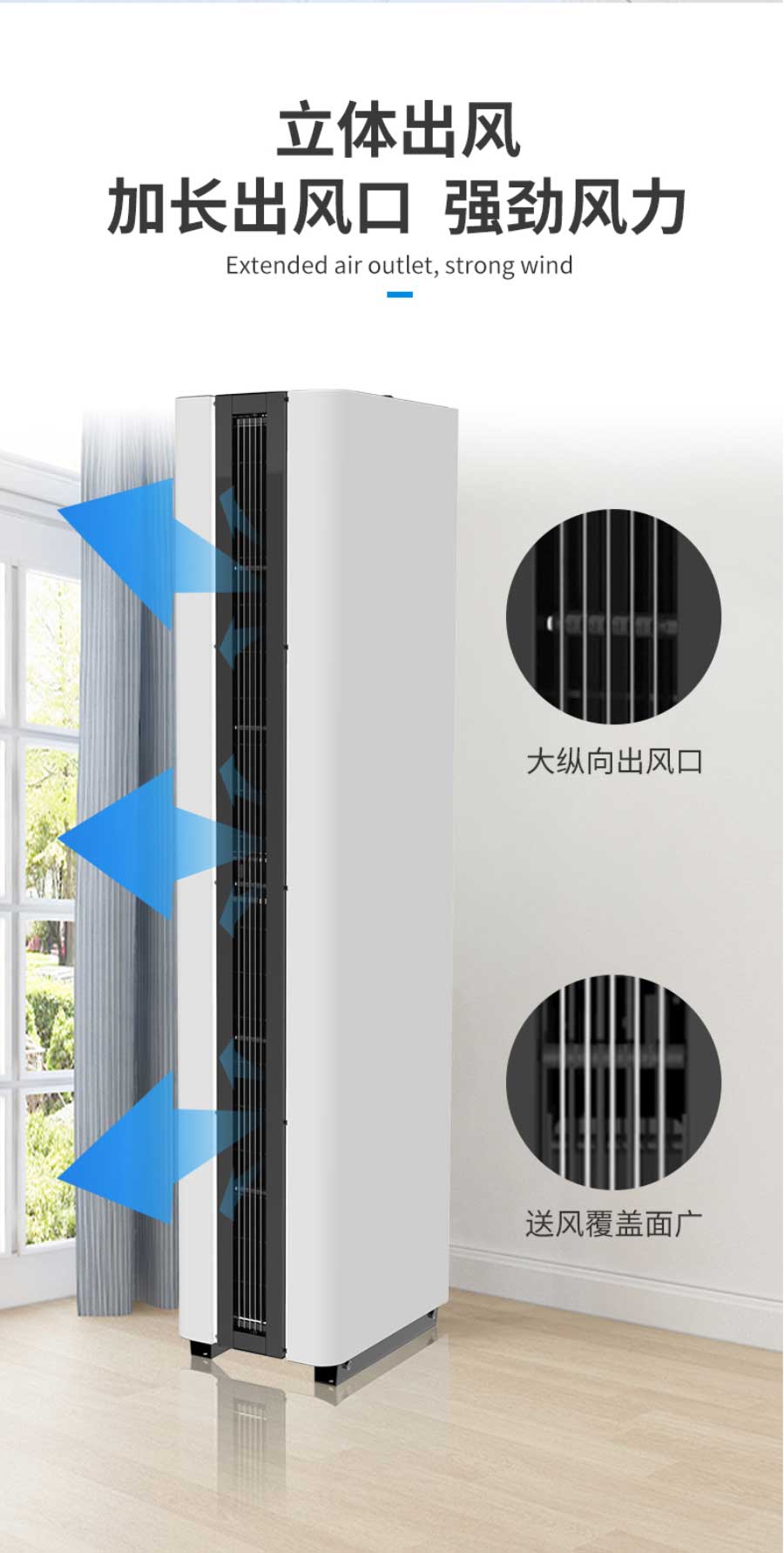

Vertical type Air Curtain / heating Air curtain

Exclusive Design

Good Performance

Double Function

Vertical type Air Curtain / heating Air curtain



Vertical type Air Curtain / heating Air curtain

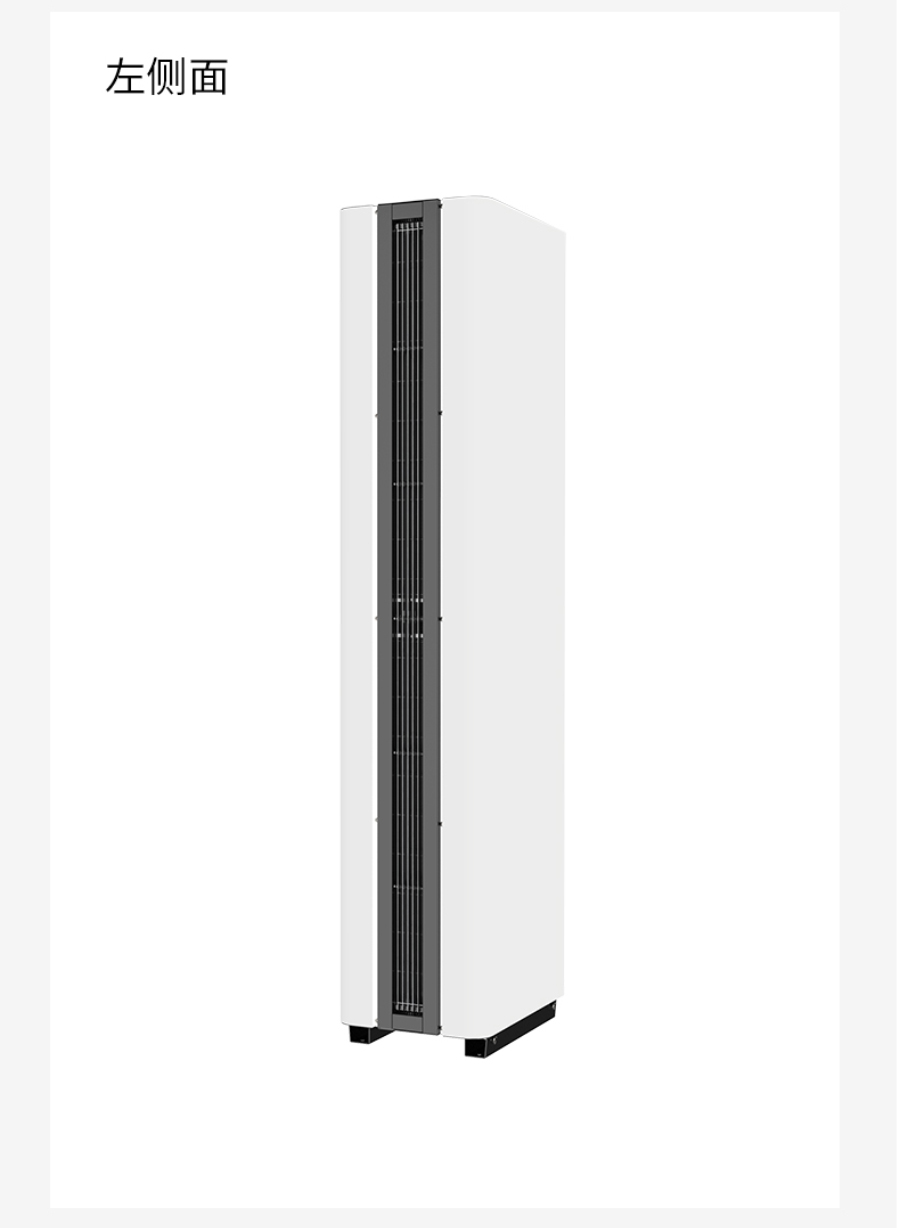

Exclusive Design

Brand new vertical cabinet body; Full metal outer cover; Easy installation and combination.

Good Performance

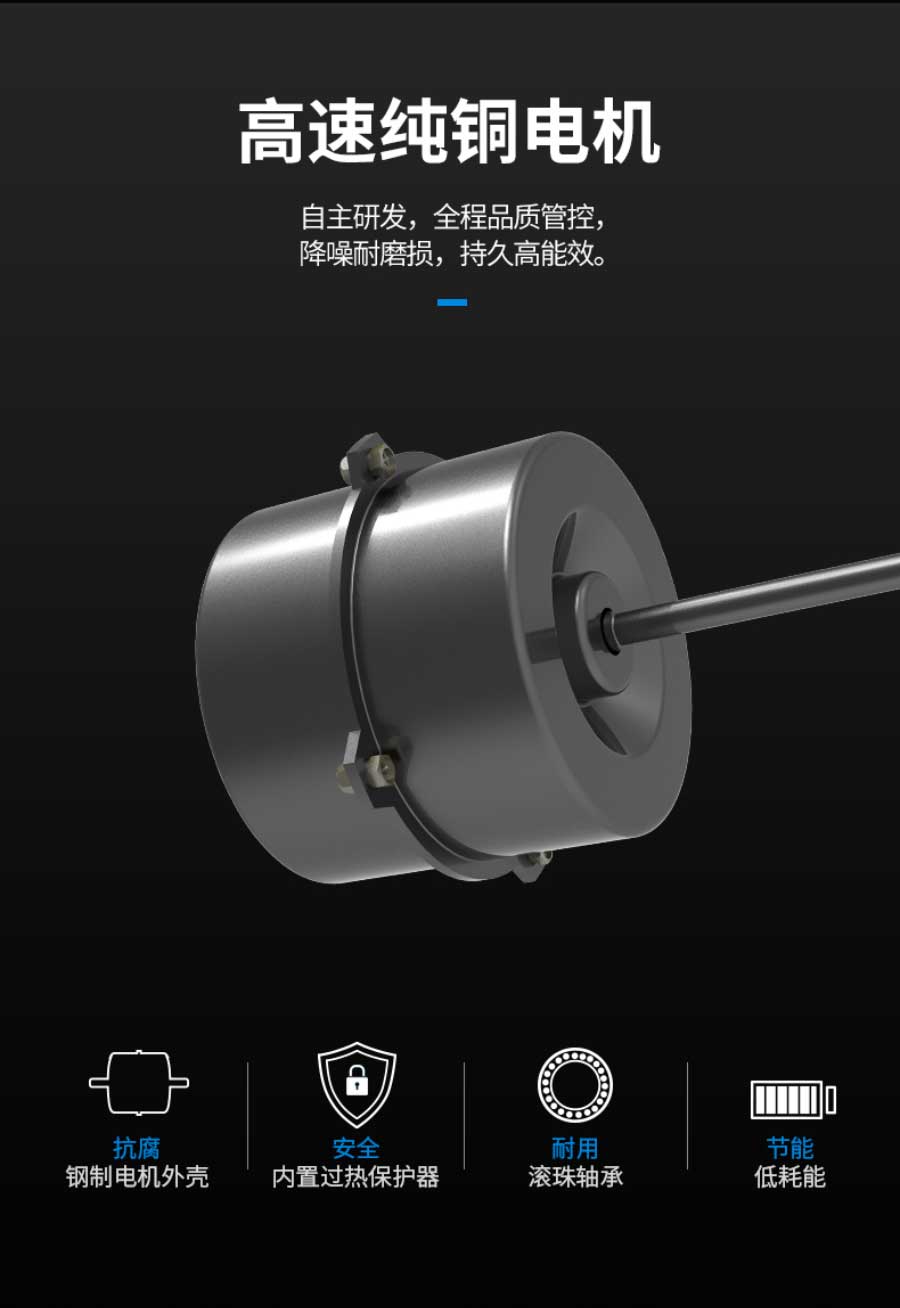

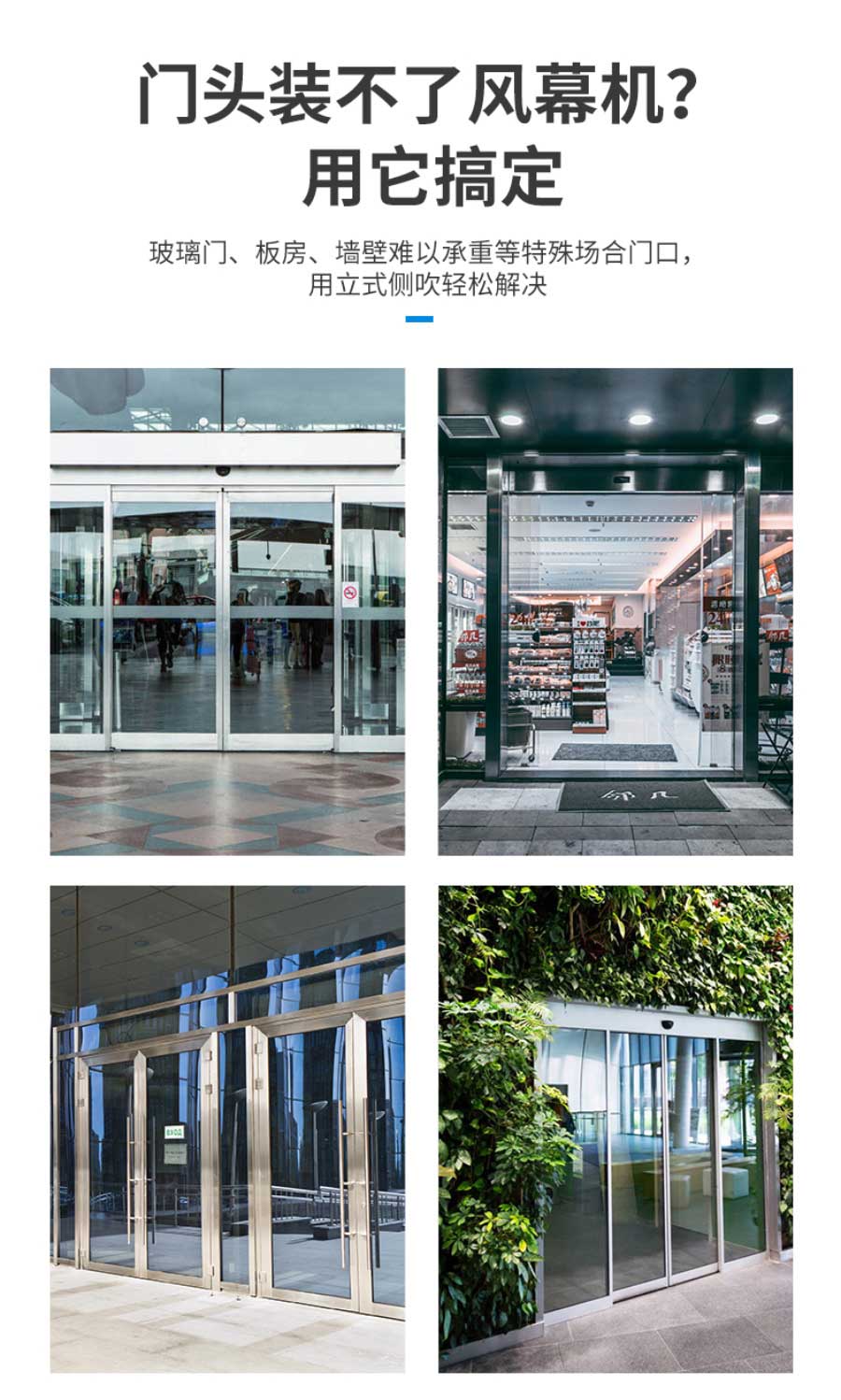

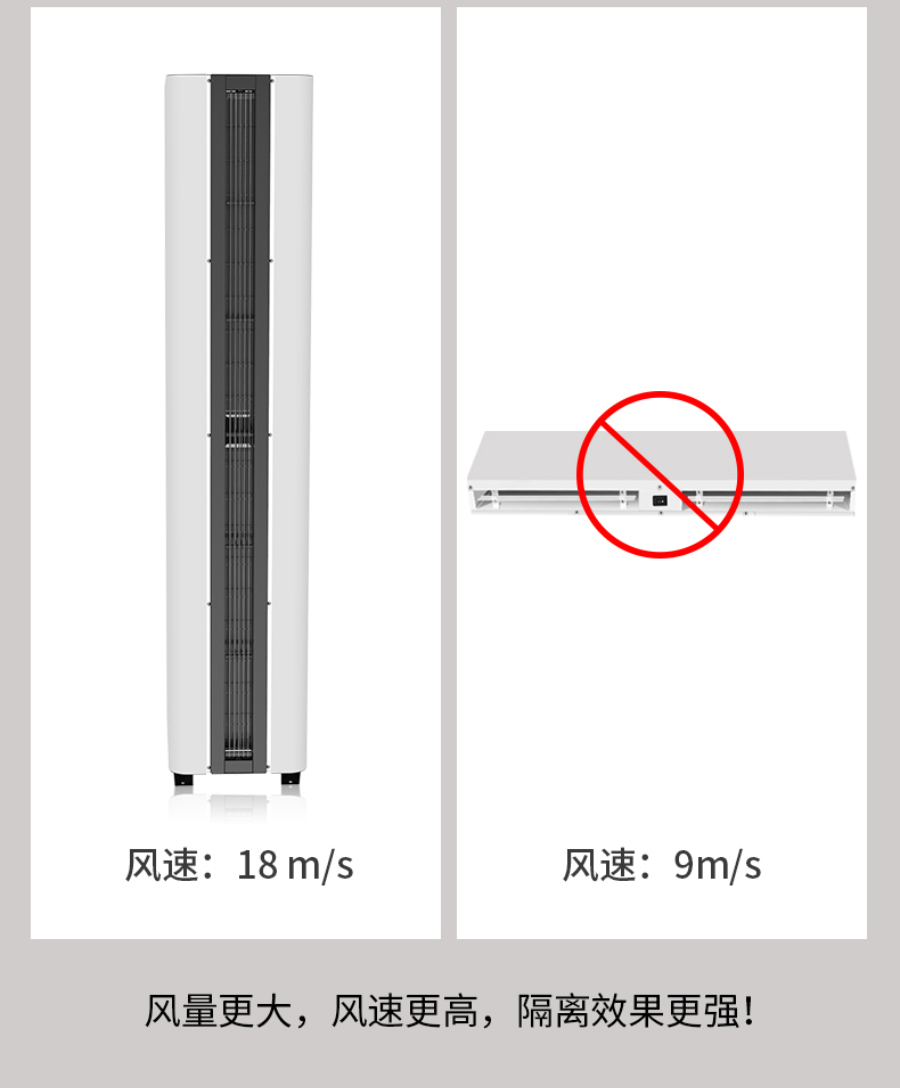

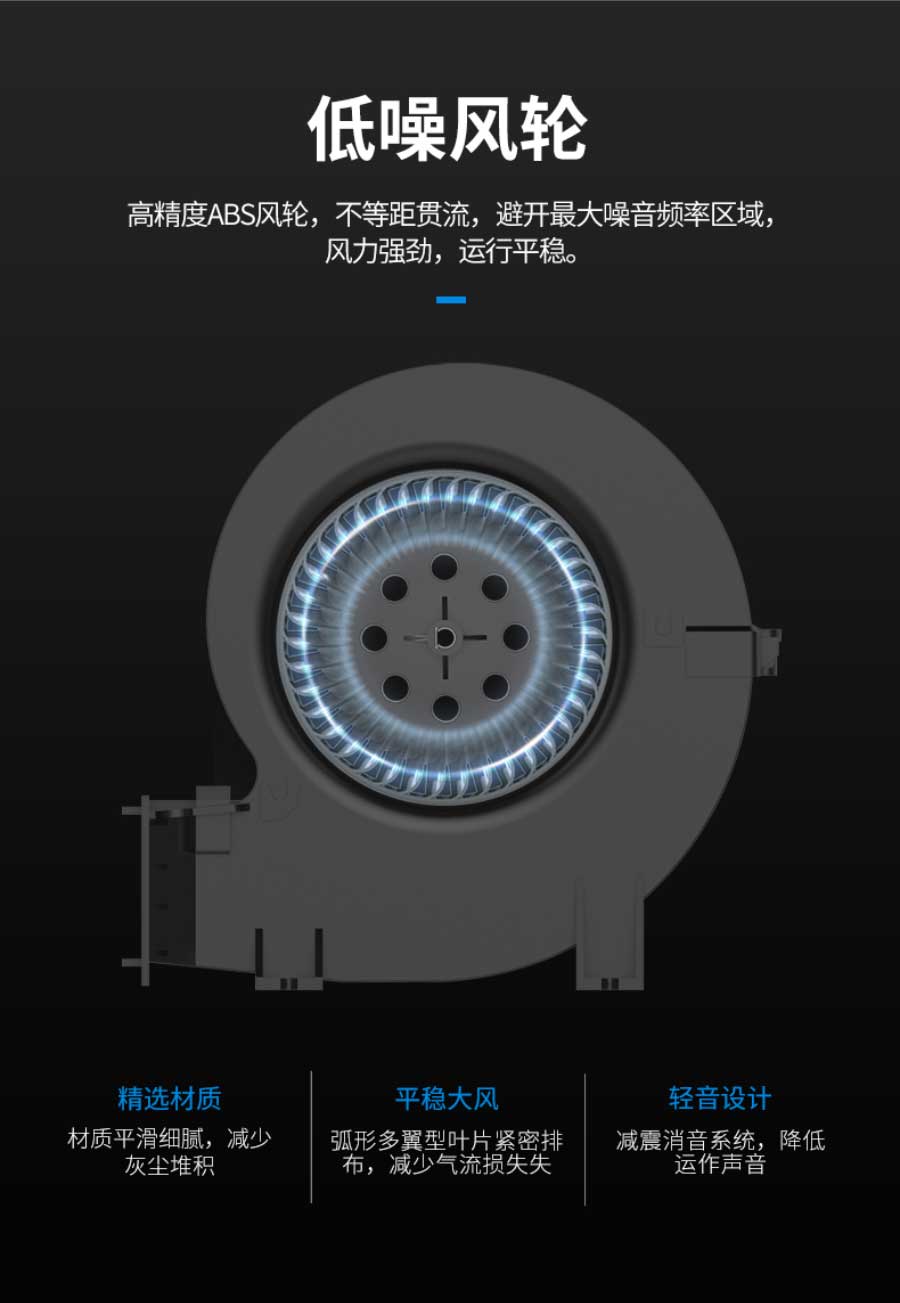

Centrifugal fan structure provide strong air barrier, high efficient. It is available to customize the length as per the mounting height. Suitable for malls, workshops, garage entrance and other places where are unable to install above the entrance.

Double Function

Two types of airflow - heated or cool air. Available in all seasons. Heated models build in PTC Heater which is safety and high power output.

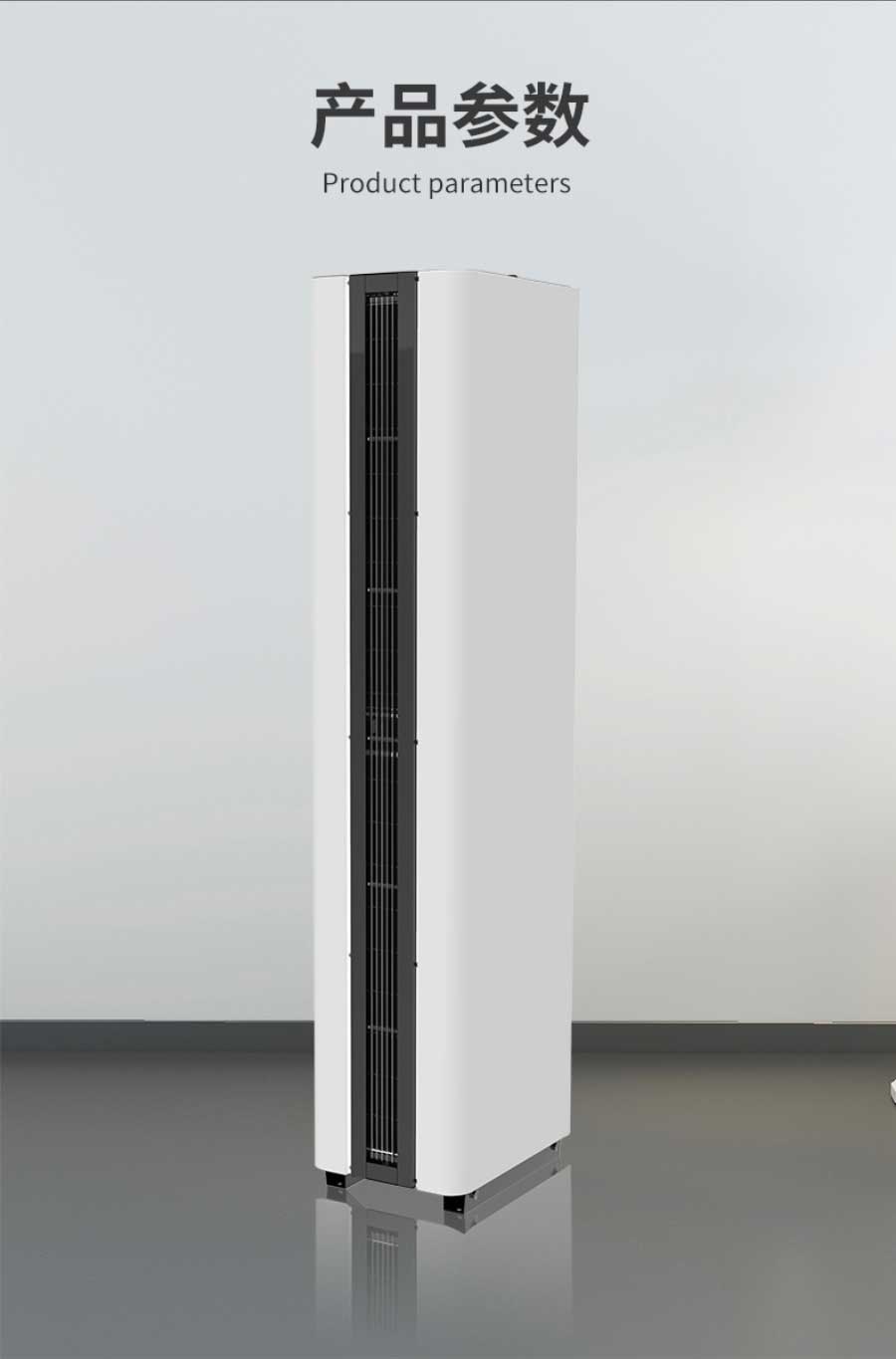

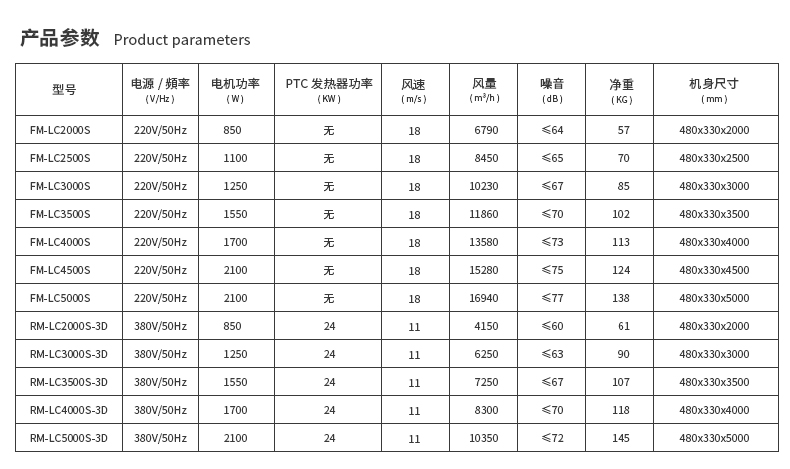

Vertical type Air Curtain / heating Air curtain

MODEL

Size(L*W*H)

(mm)

Voltage

(V~)

Frequency

(Hz)

PTC Power

 (kw)

Motor Power

(w)

Air velocity

(m/s)

Air volume

(m³/h)

Noise

(dB)

Net weight

(kg)

Remark

FM-LC2000S

480x330x2000

220

50

0

850

18

6790

<64

57 cool air only

FM-LC2500S

480x330x2500

220

50

0

1100

18

8450

<65

70 cool air only

FM-LC3000S

480x330x3000

220

50

0

1250

18

10230

<67

85 cool air only

FM-LC3500S

480x330x3500

220

50

0

1550

18

11860

<70

102 cool air only

FM-LC4000S

480x330x4000

220

50

0

1700

18

13580

<73

113 cool air only

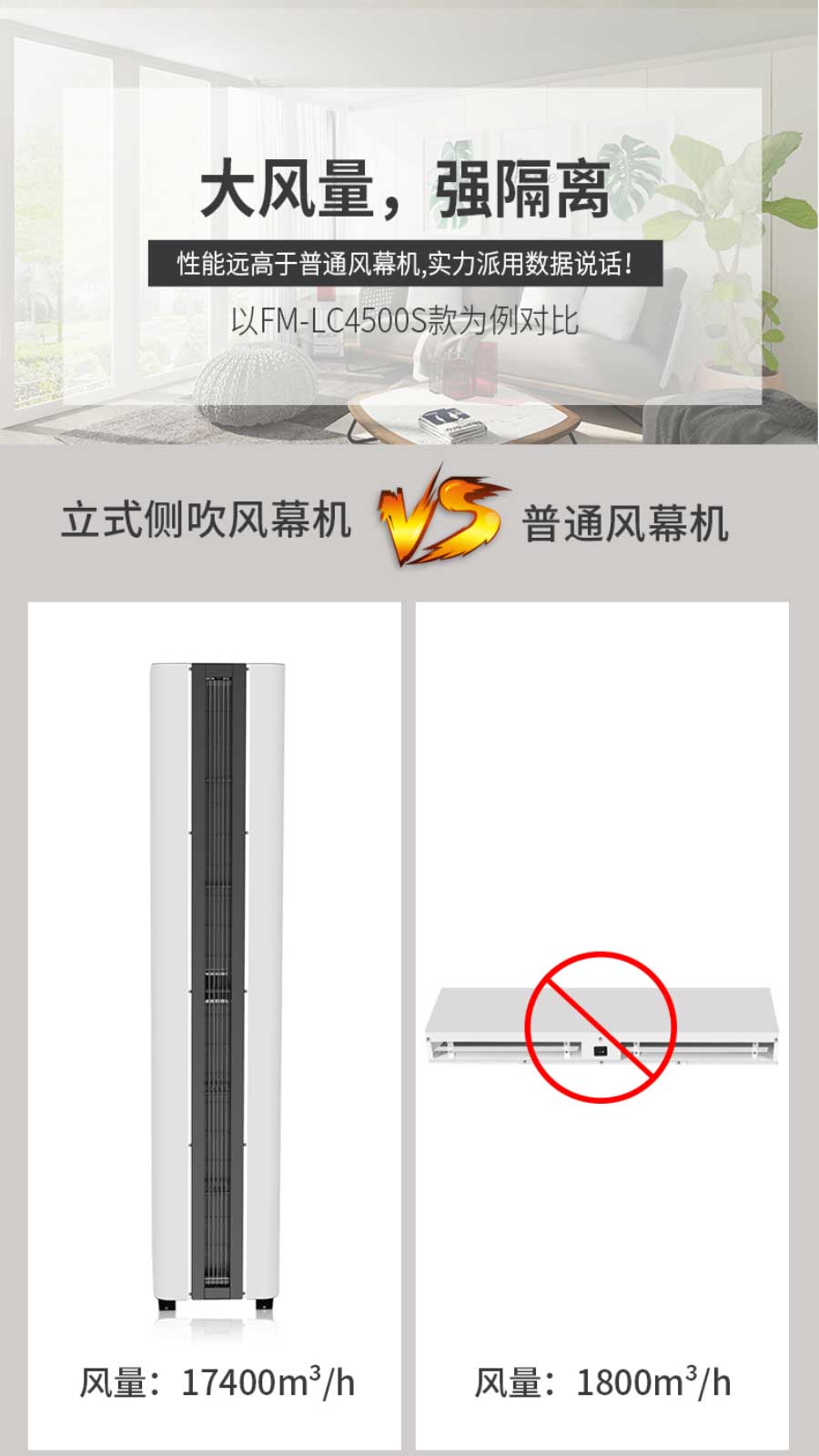

FM-LC4500S

480x330x4500

220

50

0

2100

18

15280

<75

124 cool air only

FM-LC5000S

480x330x5000

220

50

0

2100

18

16940

<77

138 cool air only

RM-LC2000S-3D

480x330x2000

380

50

24

850

11

4150

<60

61 2.0m heated

RM-LC3000S-3D

480x330x3000

380

50

24

1250

11

6250

<63

90 2.0m heated+1.0m cool air

RM-LC3500S-3D

480x330x3500

380

50

24

1550

11

7250

<67

107 2.0m heated+1.5m cool air

RM-LC4000S-3D

480x330x4000

380

50

24

1700

11

8300

<70

118 2.0m heated+2.0m cool air

RM-LC5000S-3D

480x330x4500

380

50

24

2100

11

10350

<72

145 2.0m heated+2.0m+1m cool air

Note: According to the 2m height model as the basic assembly module, site installation and combination.
